Product Description

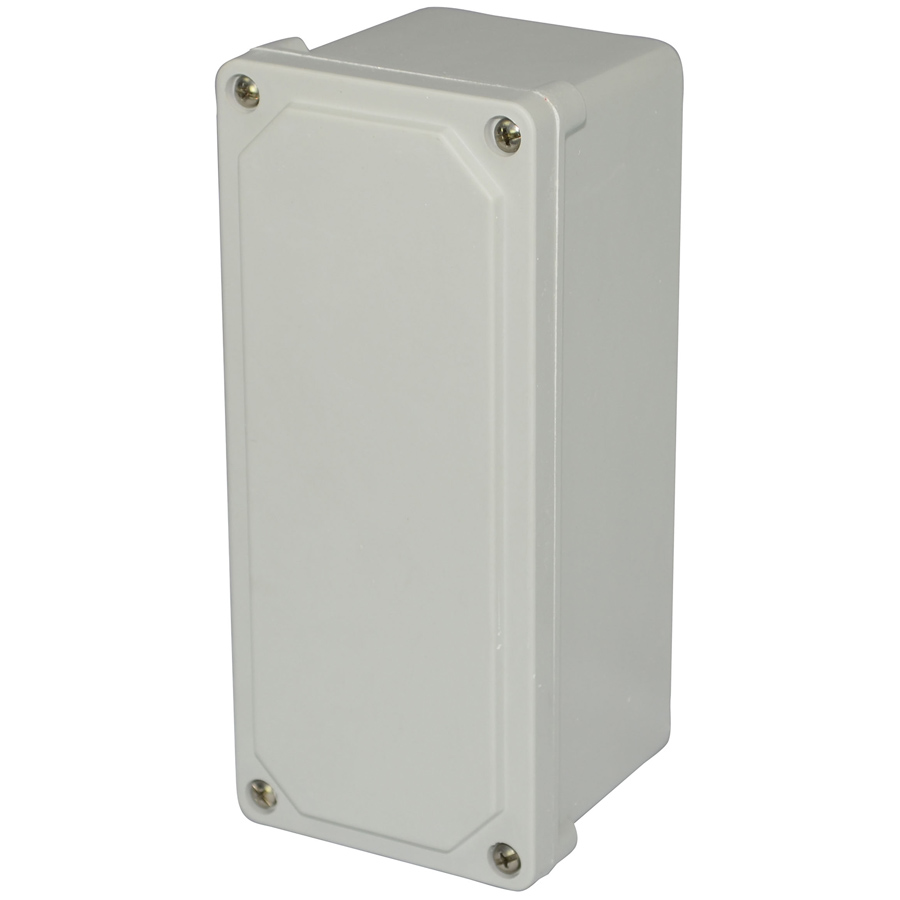

Pendant type junction box assembly

Cover Type: Lift-Off 4-Screw Solid/Opaque Cover

Brand: Small Junction Box
Catalog #: AM943SF

Height: 8.26 in.
Width: 3.26 in.
Depth: 3.12 in.
Usable Depth: 3.08 in.
Volume: 98 cu. in.

Carton Quantity: 1
Carton Weight: 2 lb.

UPC: 085339910107
UNSPSC: 39121324
Country of Origin: United States of America

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel fasteners and a formed in place polyurethane gasket system encased in a continuous channel on the cover.


Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.


Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175



CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590



Complies with:

  1. EN / IEC 60204-1 and 60529 Type IP66
  2. RoHS directive



 Ce Marking Logo  CSA CUS  Cuslistv  Rohs Logo LR


Color

RAL 7035 - Gray


Material

ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover


Mounting

No mounting brackets supplied


Enclosure Accessories

Back Panels and Hole Plugs


Additional Materials

316 stainless steel external hardware (hinges, latches and fasteners)


Plated carbon steel internal hardware


Brass inserts


Polyurethane (FIP) Formed-In-Place gasket system
