Product Description

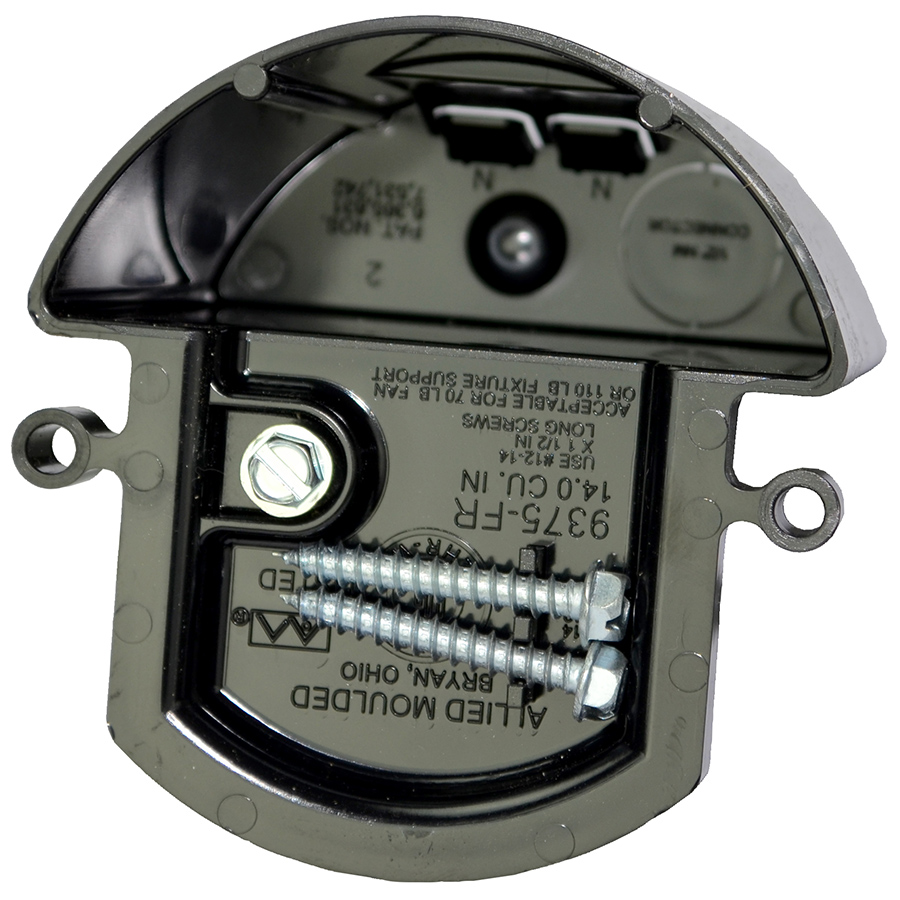

4" dia. round fan support box for use with nonmetallic sheathed cable
Catalog #: 9375-FR
Width: 4 in.
Depth: 3-13/16 in.
Volume: 14 cu. in.
Type of Installation: Old or New Work
Round Ceiling Box
Carton Quantity: 24
Carton Weight: 7 lb.
UPC: 085339792918
UNSPSC: 39121316
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
1/2" deep base with side cube wiring capacity, fan/fixture screws for joist mounting
Application
New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Bottom mount
Additional Materials
Plated carbon steel fasteners
Support Rating
110 lbs fixture support and 70 lbs fan support
