Product Description

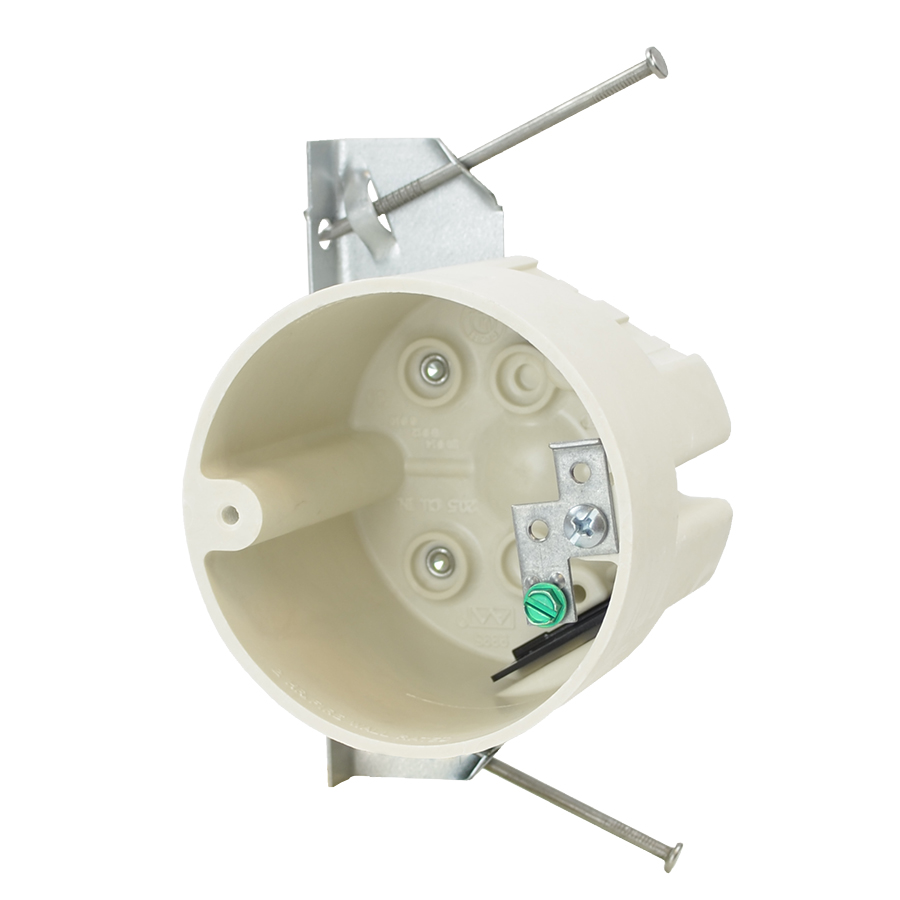

3.5" dia. round fixture support box for use with nonmetallic sheathed cable

Brand: fiberglassBOX™
Catalog #: 9335-HNGK

Width: 3.5 in.
Depth: 2-15/16 in.
Volume: 20.5 cu. in.
Type of Installation: New Work
Round Ceiling Box

Carton Quantity: 50
Carton Weight: 29 lb.

UPC: 085339418238
UNSPSC: 39121316
Country of Origin: United States of America


Features

Machine tapped fixture holes, ground strap, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed


Application

New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)


Standards

ANSI / UL 514C: File No. E30594



Ul Code Black




Fire Classification

Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C



Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches



Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


Color

Beige/tan


Material

Fiberglass reinforced polyester BMC


Mounting

Nail-on backside HN hanger bracket for adjusting to additional wall/ceiling substrate


Additional Materials

Galvanized steel brackets and plated carbon steel fasteners


Polyvinyl chloride clamps


Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw


Support Rating

50 lbs fixture support
