Product Description

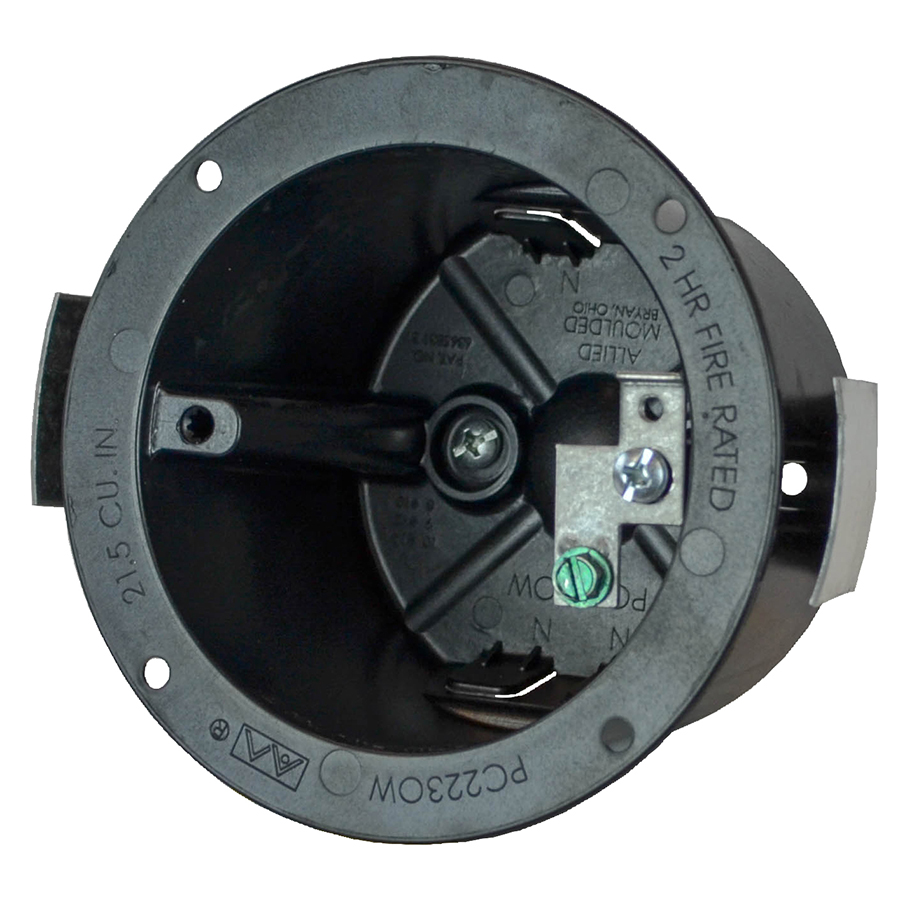

3.5" dia. round fixture support box for use with nonmetallic sheathed cable

Brand: flexBOX®
Catalog #: PC223OWG

Width: 3-1/2 in.
Depth: 2-13/16 in.
Volume: 21.5 cu. in.
Type of Installation: Old Work
Round Ceiling Box

Carton Quantity: 24
Carton Weight: 9 lb.

UPC: 085339980292
UNSPSC: 39121316
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America


Features

Machine tapped fixture holes, round exterior for easy cut-in, ground strap


Application

Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.


Standards

ANSI / UL 514C: File No. E30594



Ul Code Black




Fire Classification

Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)

Note: Products must also be certified to: ANSI / UL 514C



Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


Color

Black


Material

Polycarbonate


Mounting

Snap bracket/box flange wall compression


Additional Materials

Galvanized steel brackets and plated carbon steel fasteners


Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw


Support Rating

Meets NEC for wall applications
