Product Description

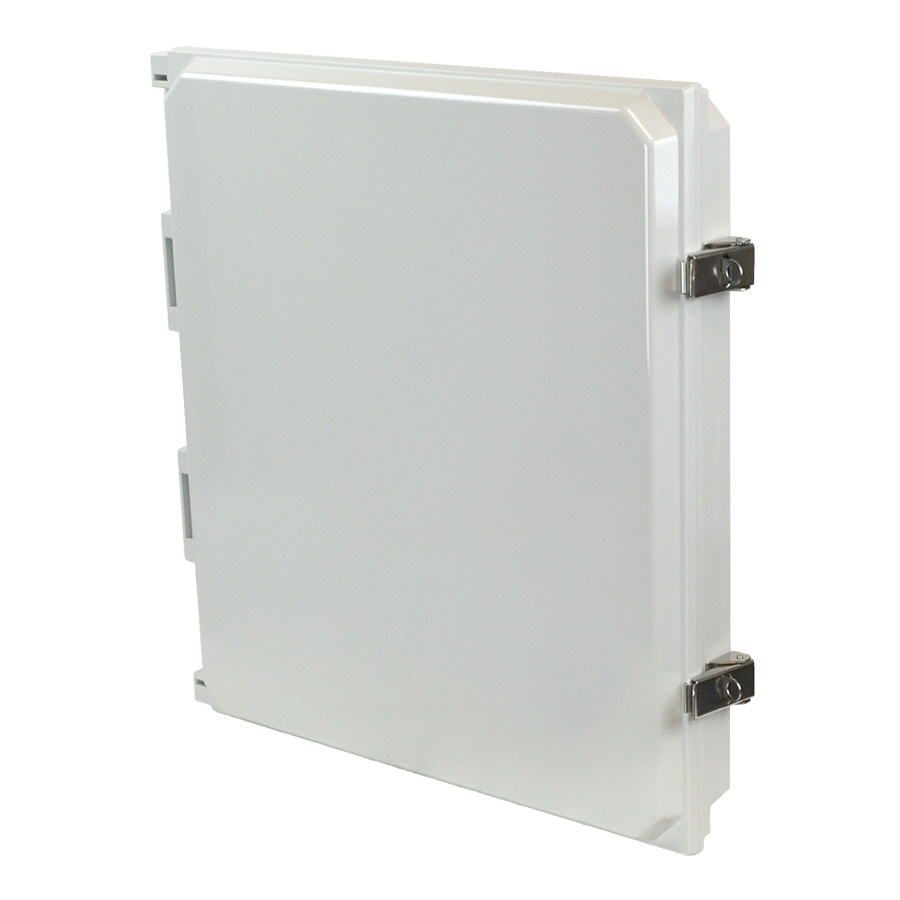

16" x 14" HMI Cover Kit
Cover Type: Metal Snap Latch Hinged Solid/Opaque Cover
Catalog #: AMHMI164L
Height: 15.87 in.
Width: 14.07 in.
Depth: 0.96 in.
Usable Depth: 2.2 in.
Volume: 491 cu. in.
Carton Quantity: 1
Carton Weight: 7 lb.
UPC: 085339975410
UNSPSC: 39121302
Country of Origin: United States of America
Features
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of 14.49" x 12.71" and is a UL recognized component for use with NEMA 4X enclosures.
Application
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards.
Standards
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Complies With:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
Color
RAL 7035 - Gray
Material
Polycarbonate frame and cover
Mounting
10 screws
Additional Materials
316 stainless steel external hardware
Polyurethane (FIP) Formed-In-Place gasket system
