AM Series Flat Cover Enclosures

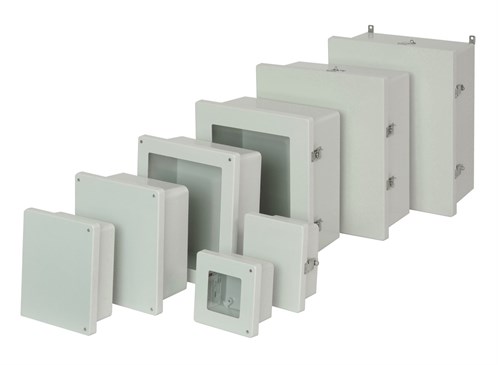

JIC Flat Cover

AM Series boxes are designed to insulate and protect controls and components in both indoor and outdoor applications and are especially well suited for high temperature or corrosive environments. They feature flat covers with a variety of latching options that allow you to provide the level of security or ease of access needed for each application.
The AM Series offers a wide variety of sizes and configurations,

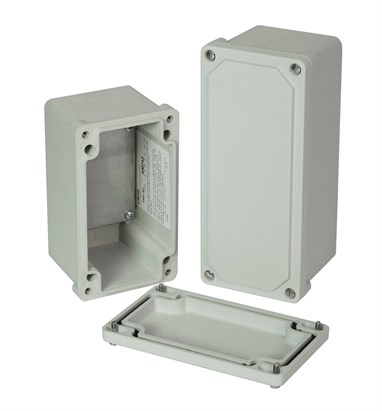

        • Small junction boxes

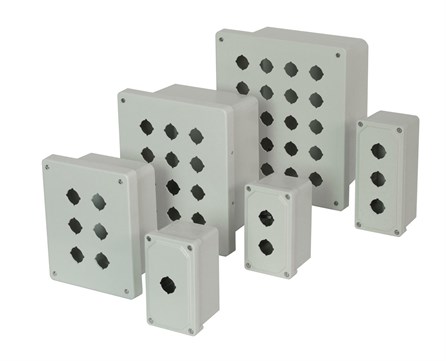

        • Inline pushbutton enclosures

        • Standard size range


New 12" x 12" sizes now available!

Expanding our AM series are the new 12"x12"x4" and 12"x12"x6" size options. The new sizes allow for increased space for electrical components, while boasting a variety of features and benefits including a formed-in-place gasket, 316 stainless steel hardware and mounting feet, and our UV stabilized ULTRAGUARD® material formulation!

Browse 12" x 12" enclosures


AM Series Features & Benefits

• Molded Ultraguard® fiberglass reinforced polyester materialPushbutton
  construction for durability

• Continuous 316 stainless steel hinge

• Formed-In-Place (FIP) polyurethane gasket system encased in
  continuous channel

• Matching flat cover

• 316 stainless steel hardware and mounting feet

• Mounting panel inserts for optional back panel

• UV stabilized for outdoor use

• Non-corrosive, non-conductive, temperature-resistant, and

• Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

Any of the AM Series enclosures can be customized with:Sm Jbox

        • Custom holes and cutouts

        • Custom size polycarbonate viewing windows

        • Molded-in color matches

        • Hinge installed on short side

        • EMI/RFI shielding

        • Factory-supplied silk screening

Accessories include:

        • Back panels available in painted carbon steel, aluminum,
           fiberglass, or galvannealed steel

        • UV resistant polycarbonate viewing windows

        • Thermal management products
