Product Description

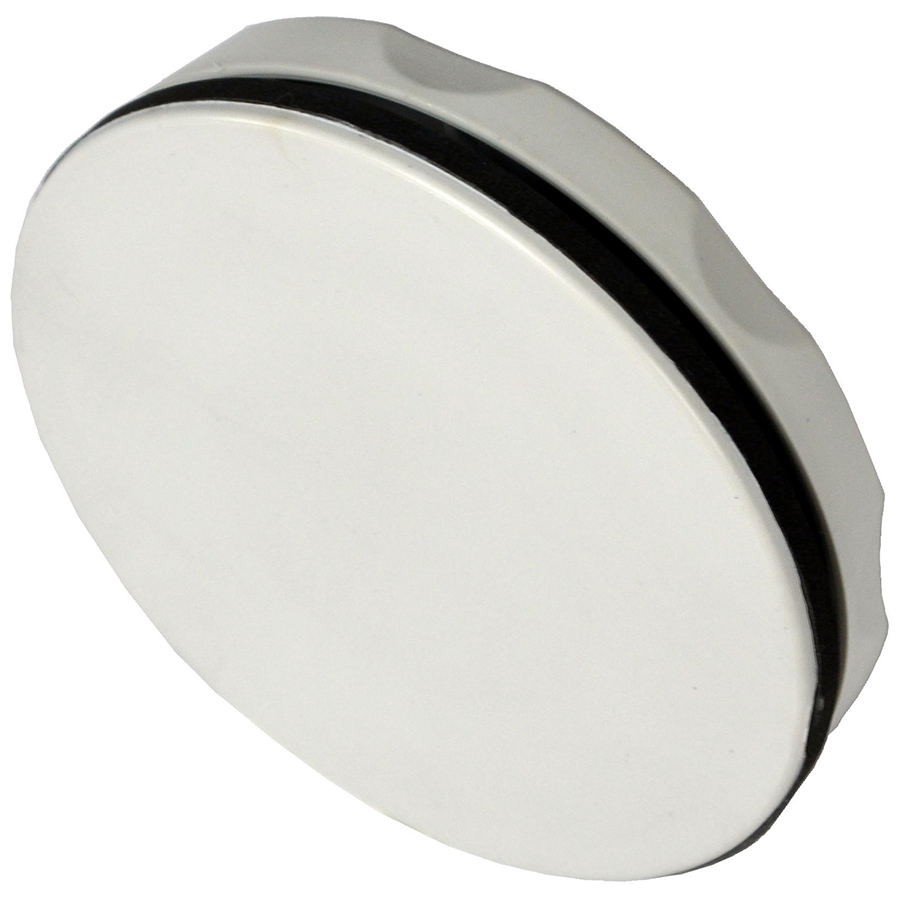

NEMA 4X Enclosure Hole Plug Assembly
Brand: ULTRAPLUG®
Catalog #: AMHS100
Trade Size Ref: 1" Conduit (1.375) nom. in.
Plugged Hole Dia. Range: 1.375-1.625 in.
Plug Diameter: 1.923 in.
Plug Head Height: 0.235 in.
Nut Height: 0.5 in.
Carton Quantity: 1
Carton Weight: 0.046 lb.
UPC: 085339995081
UNSPSC: 39121321
Patents:
U.S. Patent No. 9,045,932
Country of Origin: United States of America
Features
Plug fins are self centering, anti-rotational design for fast and easy one person assembly and no-tools tightening
Application
Capable of plugging unused holes in NEMA 4X enclosures and designed to maintain applicable NEMA/UL/CSA enclosure ratings
Standards
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 3, 3R, 4, 4X, and 12.
Complies with:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
Color
RAL 7035 light gray
Material
Polycarbonate
Additional Materials
Blended neoprene/EPDM gasket
AMHS100-GY
