Product Description

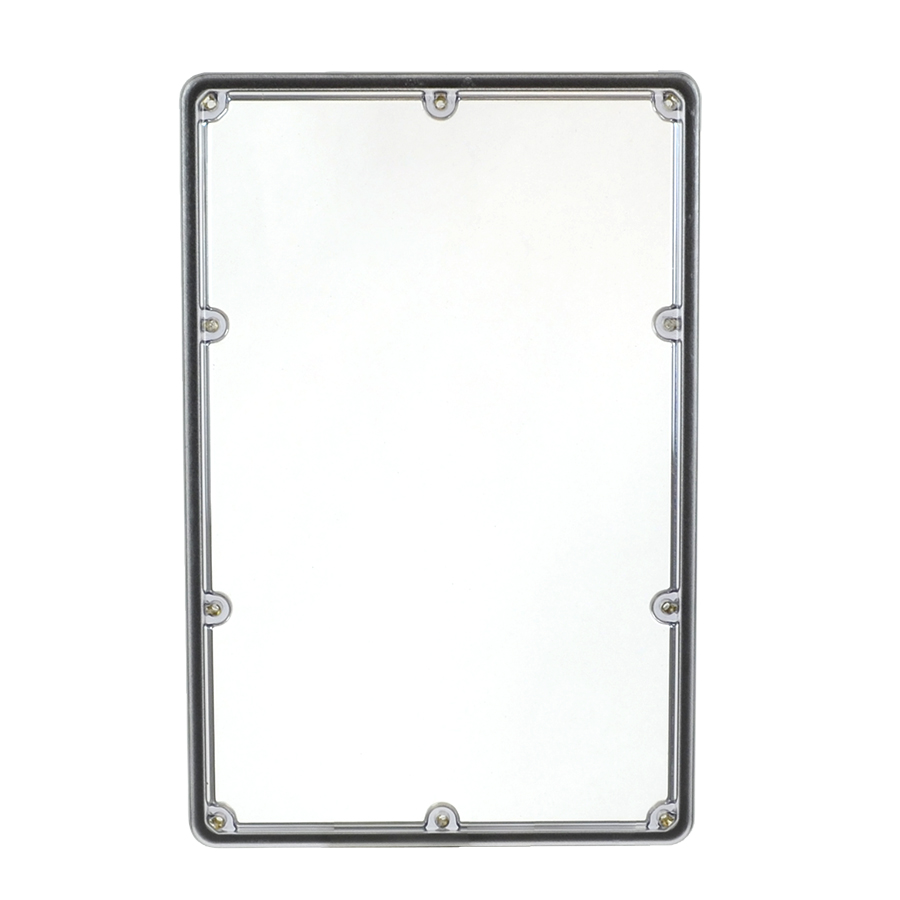

Inspection Window Kit 13" x 8"
Cover Type: Lift-Off 10-Screw Clear Cover
Catalog #: AMHMI138CX
Height: 14.7 in.
Width: 9.7 in.
Depth: 0.6 in.
Usable Depth: 0.47 in.
Carton Quantity: 1
Carton Weight: 2 lb.
UPC: 085339975441
UNSPSC: 39121302
Country of Origin: United States of America
Features
Rigid clear window design with a gasket system encased in a continuous channel to provide an inspection point to see inside the enclosure, but also seal to the exterior of the enclosure and maintain it's intended rating. UL recognized component for use with NEMA 4X enclosures.
Application
Inspection window for use on the exterior walls of NEMA Type 4X enclosures which allows the end user a viewing hole to see important equipment housed inside without having to access the enclosure.
Standards
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 3, 3R, 4, 4X, and 12.
Complies with:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Complies With:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
Color
Clear Polycarbonate
Material
Polycarbonate
Mounting
10 screws
Additional Materials
Plated carbon steel internal hardware
Brass inserts
Polyurethane (FIP) Formed-In-Place gasket system
