Product Description

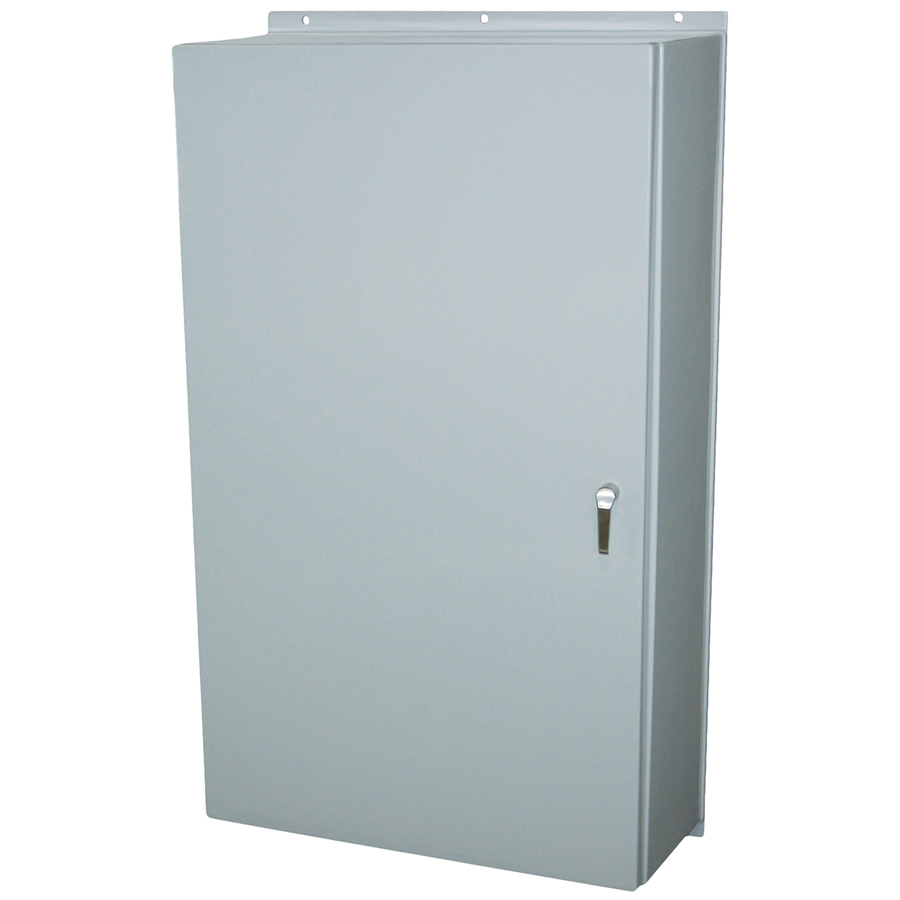

Wall mount enclosure assembly
Cover Type: 3-Point Lockable Latching Handle Hinged Cover
Brand: Empire Series
Catalog #: AM603612L3PT
Height: 60.25 in.
Width: 36.25 in.
Depth: 10.14 in.
Usable Depth: 10.27 in.
Volume: 25510 cu. in.
Carton Quantity: 1
Carton Weight: 103 lb.
UPC: 085339994862
UNSPSC: 39121324
Country of Origin: United States of America
Features
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.
Application
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Standards
UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175
CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Complies with:
- EN / IEC 60204-1 and 60529 Type IP66
- RoHS directive
Color
RAL 7035 - Gray
Material
Gel coat fiberglass reinforced polyester - RTM
Mounting
Molded flange
Enclosure Accessories
Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Additional Materials
316 stainless steel external hardware (hinges, latches and fasteners)
Plated carbon steel internal hardware
EPDM Spring loaded gasket
316 stainless steel external 3-point latching handle
Plated alloy steel bonding fastener
