Product Description

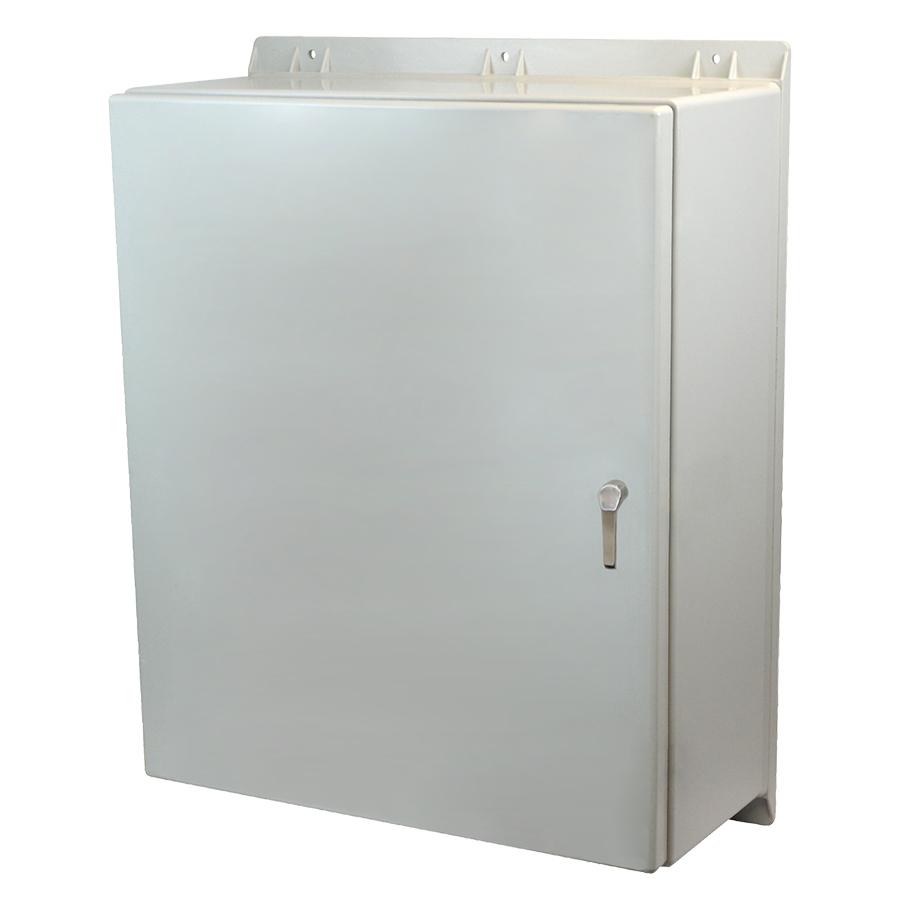

Wall mount enclosure assembly

Cover Type: 3-Point Lockable Latching Handle Hinged Cover

Brand: Empire Series
Catalog #: AMEC3630123PT

Height: 36.50 in.
Width: 30.50 in.
Depth: 12.03 in.
Usable Depth: 12.48 in.
Volume: 15,062 cu. in.

Carton Quantity: 1
Carton Weight: 77 lb.

UPC: 085339972273
UNSPSC: 39121324
Country of Origin: United States of America

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a formed-in-place polyurethane gasket system.


Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.


Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175



CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590



Complies with:

  1. EN / IEC 60204-1 and 60529 Type IP66
  2. RoHS directive



 Ce Marking Logo  CSA CUS  Cuslistv  Rohs Logo LR


Color

RAL 7035 - Gray


Material

ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover


Mounting

Molded flange


Enclosure Accessories

Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit


Additional Materials

Plated carbon steel internal hardware


316 stainless steel external hardware


Brass inserts


Polyurethane (FIP) Formed-In-Place gasket system
