Product Description

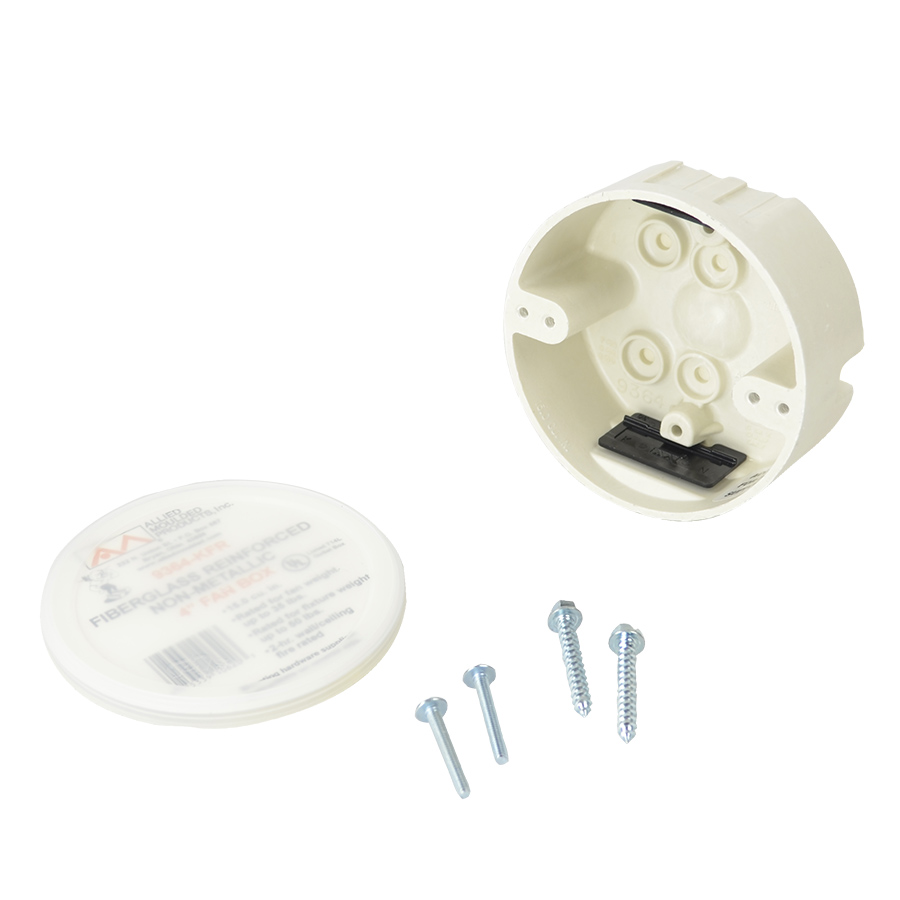

4" dia. round fan support box for use with nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 9364-KFR
Width: 4 in.
Depth: 1-11/16 in.
Volume: 15 cu. in.
Type of Installation: Old or New Work
Round Ceiling Box
Carton Quantity: 50
Carton Weight: 21 lb.
UPC: 085339106203
UNSPSC: 39121316
Country of Origin: United States of America
Features
Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed
Application
New or old work residential construction 2 HR fire resistive walls and ceilings (35 lbs. fan support and 50 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Bottom mount
Additional Materials
Polyvinyl chloride clamps
Plated carbon steel fasteners
Support Rating
50 lbs fixture support and 35 lbs fan support
