Product Description

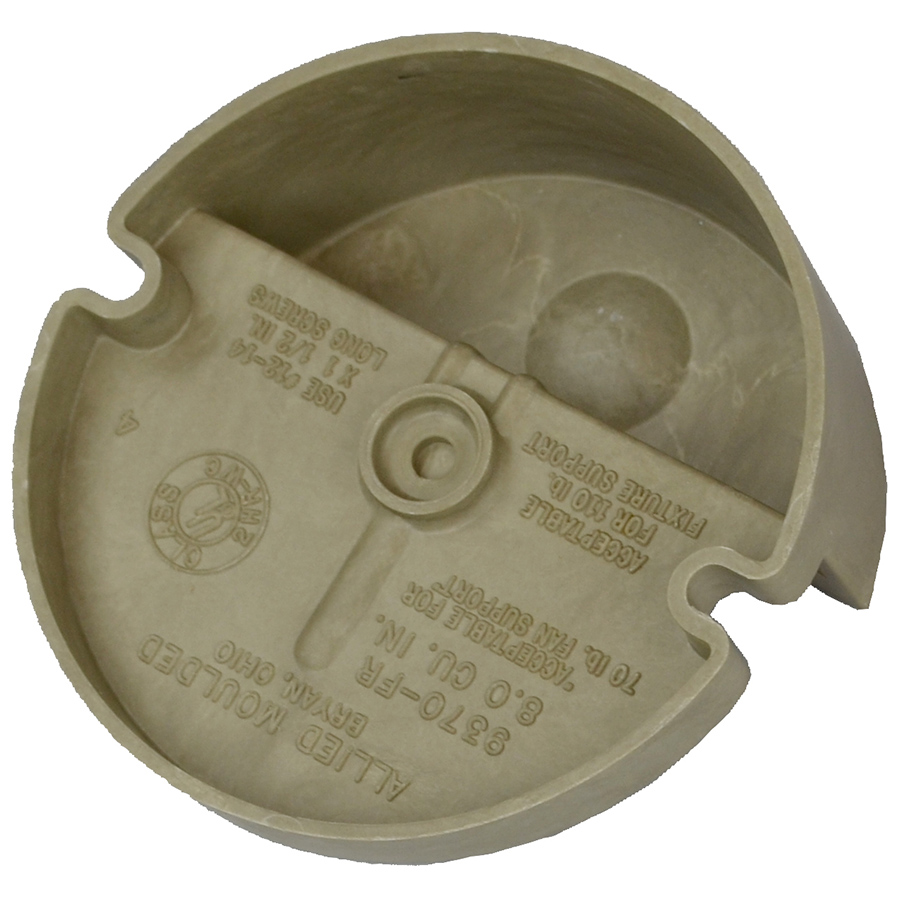

4" dia. round fan support box for use with nonmetallic sheathed cable
Catalog #: 9370-FR
Width: 4 in.
Depth: 1-1/2 in.
Volume: 8 cu. in.
Type of Installation: Old or New Work
Round Ceiling Box
Carton Quantity: 24
Carton Weight: 6 lb.
UPC: 085339766001
UNSPSC: 39121316
Country of Origin: United States of America
Features
1/2" deep base with side cube wiring capacity, fan/fixture screws for joist mounting
Application
New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Bottom mount
Additional Materials
Plated carbon steel fasteners
Nonmetallic pop-in cable clamp
Support Rating
110 lbs fixture support and 70 lbs fan support
