Product Description

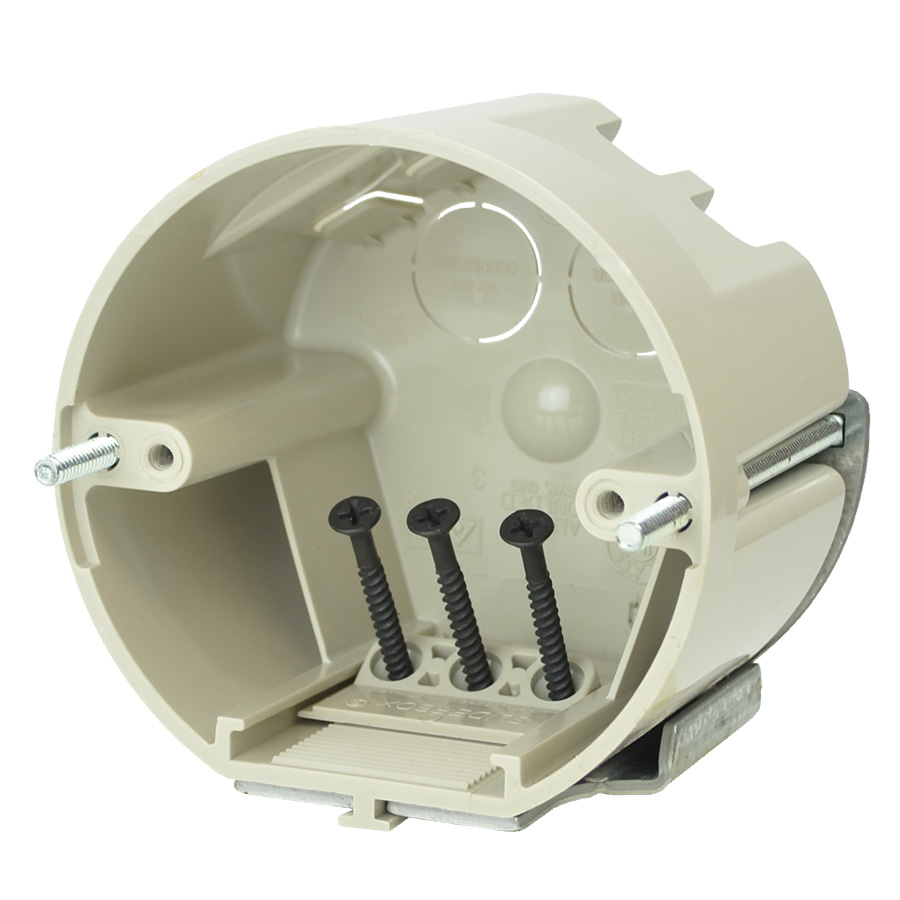

4" dia. round fan support box for use with nonmetallic sheathed cable
Brand: SLIDERBOX®
Catalog #: SB-CBFR
Width: 4 in.
Depth: 2-3/4 in.
Volume: 25 cu. in.
Type of Installation: Old or New Work
Round Ceiling Box
Carton Quantity: 12
Carton Weight: 10 lb.
UPC: 085339945062
UNSPSC: 39121316
Patents:
U.S. Patent No. 7,855,338
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped fixture holes and bolts/nuts for fan mounting, adjustable mounting plate for additional substrate thickness
Application
New and old work residential construction 2 HR fire resistive floors and ceilings (70 lbs. fan support and 90 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Polycarbonate
Mounting
Internal screws with adjustable slider plate for substrates 1/2" to 1 5/32"
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Carbon steel fasteners
Plated carbon steel fasteners
Support Rating
90 lbs fixture support and 70 lbs fan support
