Product Description

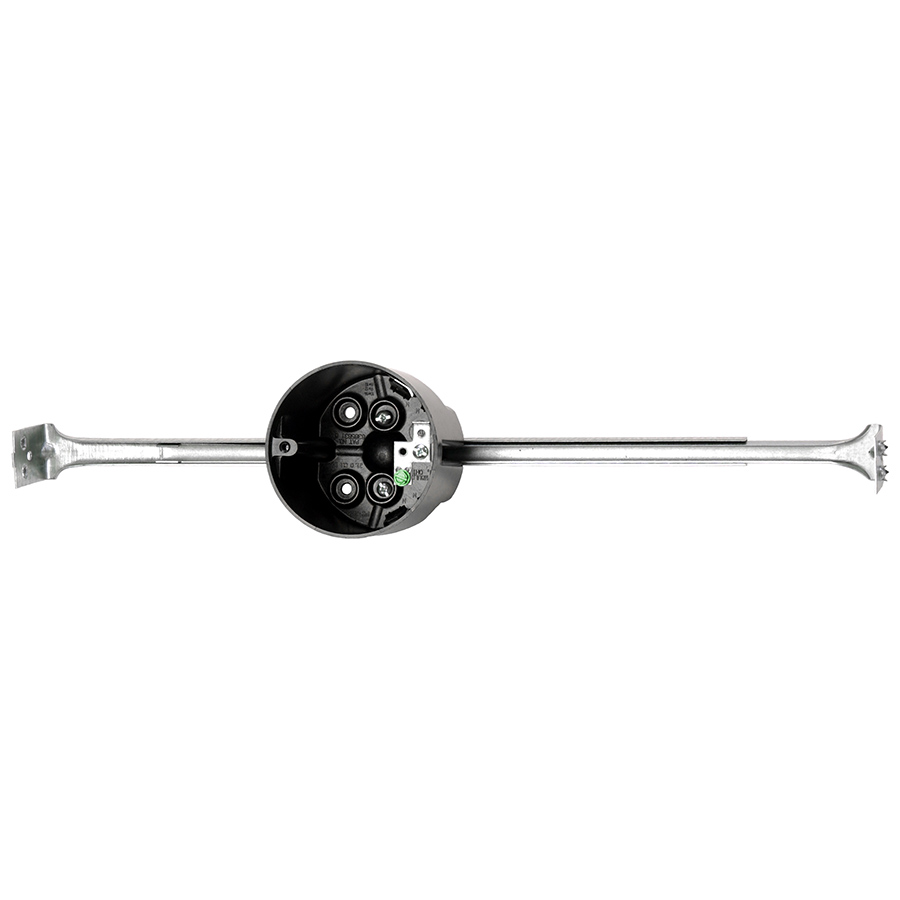

3.5" dia. round fixture support box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: PC213-16
Width: 3-1/2 in.
Depth: 2-13/16 in.
Volume: 21 cu. in.
Type of Installation: New Work
Round Ceiling Box
Carton Quantity: 24
Carton Weight: 17 lb.
UPC: 085339983040
UNSPSC: 39121316
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped fixture holes
Application
New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Adjustable bar hanger - max 16" on center Joist application
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Support Rating
50 lbs fixture support
