Product Description

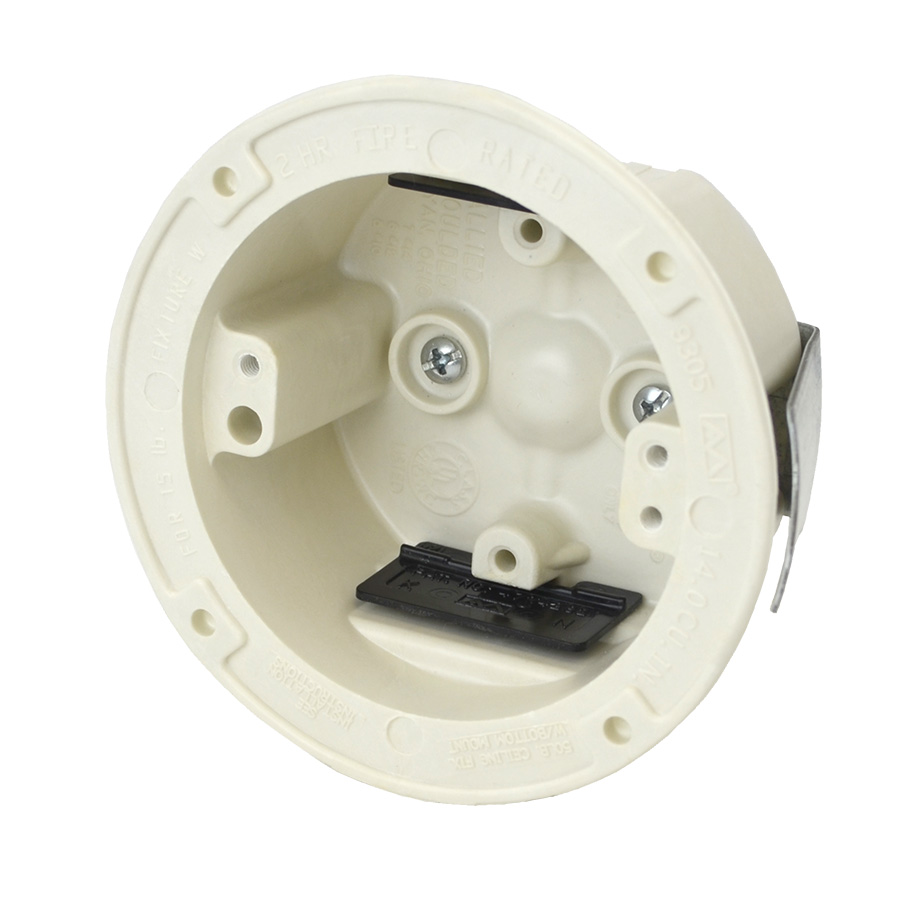

3.5" dia. round fixture support box for use with nonmetallic sheathed cable

Brand: fiberglassBOX™
Catalog #: 9305-SK

Width: 3-1/2 in.
Depth: 1-3/4 in.
Volume: 14 cu. in.
Type of Installation: Old Work
Wall Box

Carton Quantity: 50
Carton Weight: 22 lb.

UPC: 085339273516
UNSPSC: 39121308
Country of Origin: United States of America

Features

Machine tapped fixture holes, round exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed


Application

Old work residential construction 2 HR fire resistive walls (15 lbs fixture support)


Standards

ANSI / UL 514C: File No. E30594



Ul Code Black




Fire Classification

Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C



Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches



Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


Color

Beige/tan


Material

Fiberglass reinforced polyester BMC


Mounting

Snap bracket/box flange wall compression


Additional Materials

Galvanized steel brackets and plated carbon steel fasteners


Polyvinyl chloride clamps


Support Rating

15 lb fixture support
