Product Description

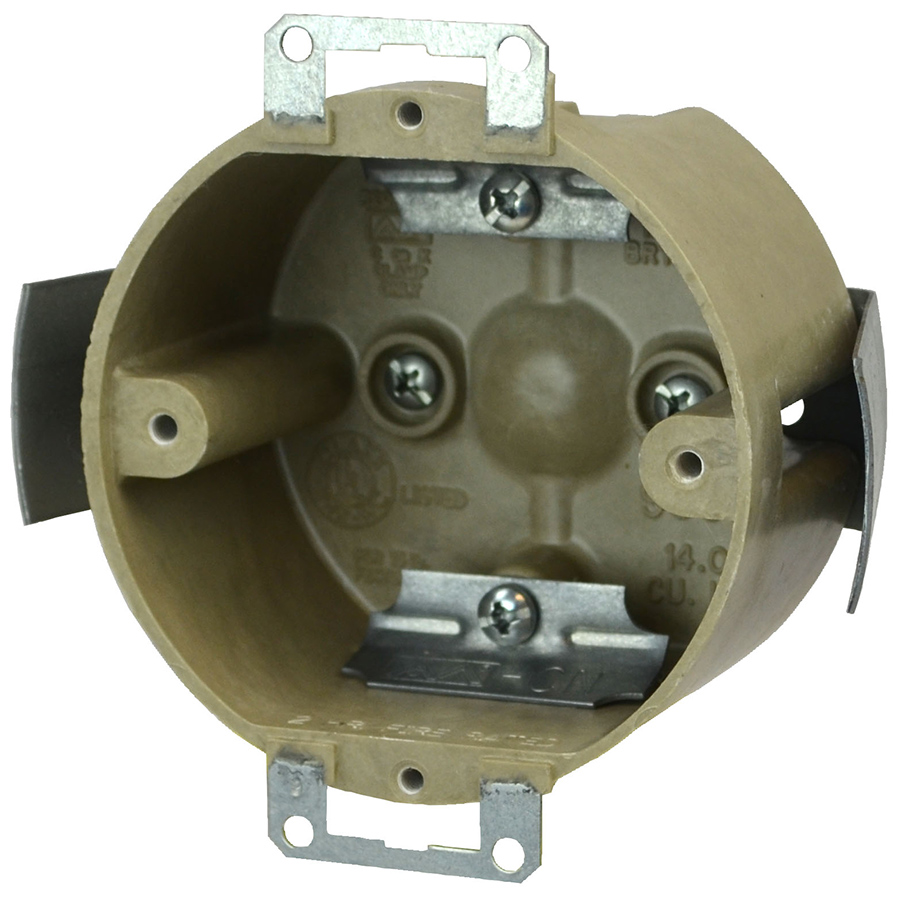

3.5" dia. round fixture support (15 lbs.) box for use with nonmetallic sheathed cable

Brand: fiberglassBOX™
Catalog #: 9338-ESC2T

Width: 3-1/2 in.
Depth: 2 in.
Volume: 14 cu. in.
Type of Installation: Old Work
Wall Box

Carton Quantity: 50
Carton Weight: 22 lb.

UPC: 085339460411
UNSPSC: 39121308
Country of Origin: United States of America


Features

Machine tapped fixture holes and device holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures


Application

Old work residential construction 2 HR fire resistive walls (15 lbs fixture support)


Standards

ANSI / UL 514C: File No. E30594



Ul Code Black




Fire Classification

Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C



Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches



Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


Color

Beige/tan


Material

Fiberglass reinforced polyester BMC


Mounting

Snap bracket/metal ears wall compression


Additional Materials

Galvanized steel brackets and plated carbon steel fasteners


Plated carbon steel clamp and fasteners


Support Rating

15 lb fixture support
