Product Description

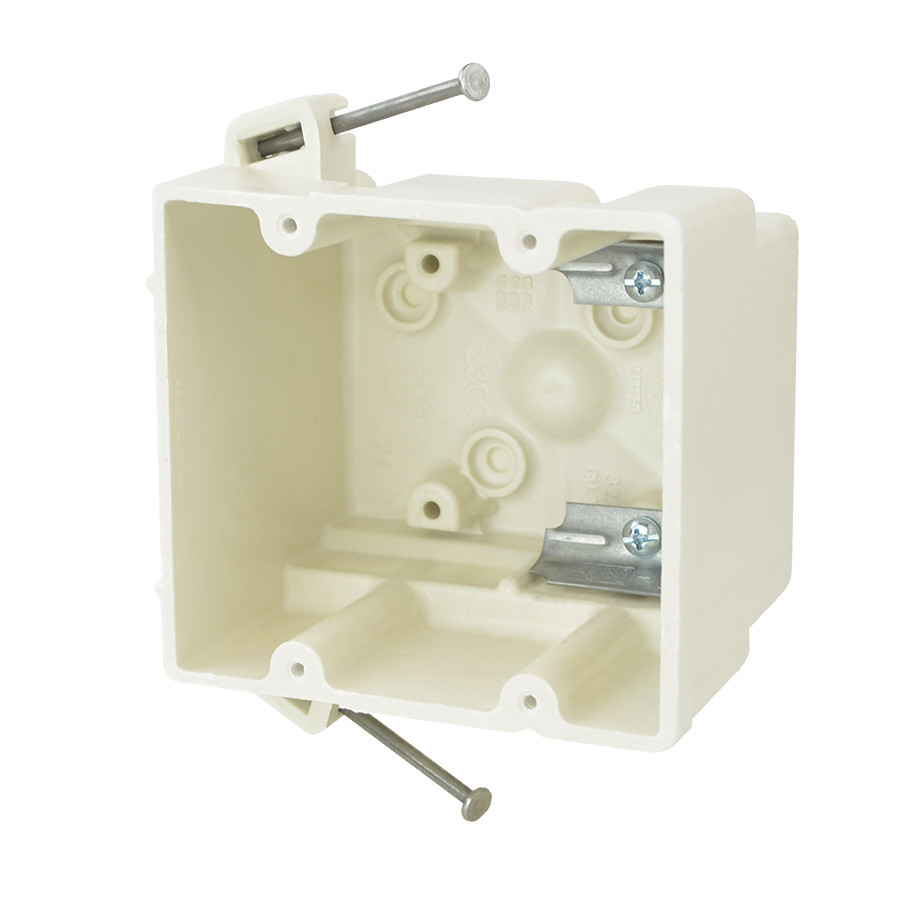

Two gang electrical box for use with nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 2300-NC2
Height: 3-3/4 in.
Width: 4 in.
Depth: 3 in.
Volume: 32.5 cu. in.
Type of Installation: New Work
Wall Box
Number of Gangs: 2
Carton Quantity: 48
Carton Weight: 29 lb.
UPC: 085339121350
UNSPSC: 39121308
Country of Origin: United States of America
Features
Machine tapped device holes, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
Application
New work residential construction 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Angled mid nails
Additional Materials
Carbon steel fasteners
Plated carbon steel clamp and fasteners
