Product Description

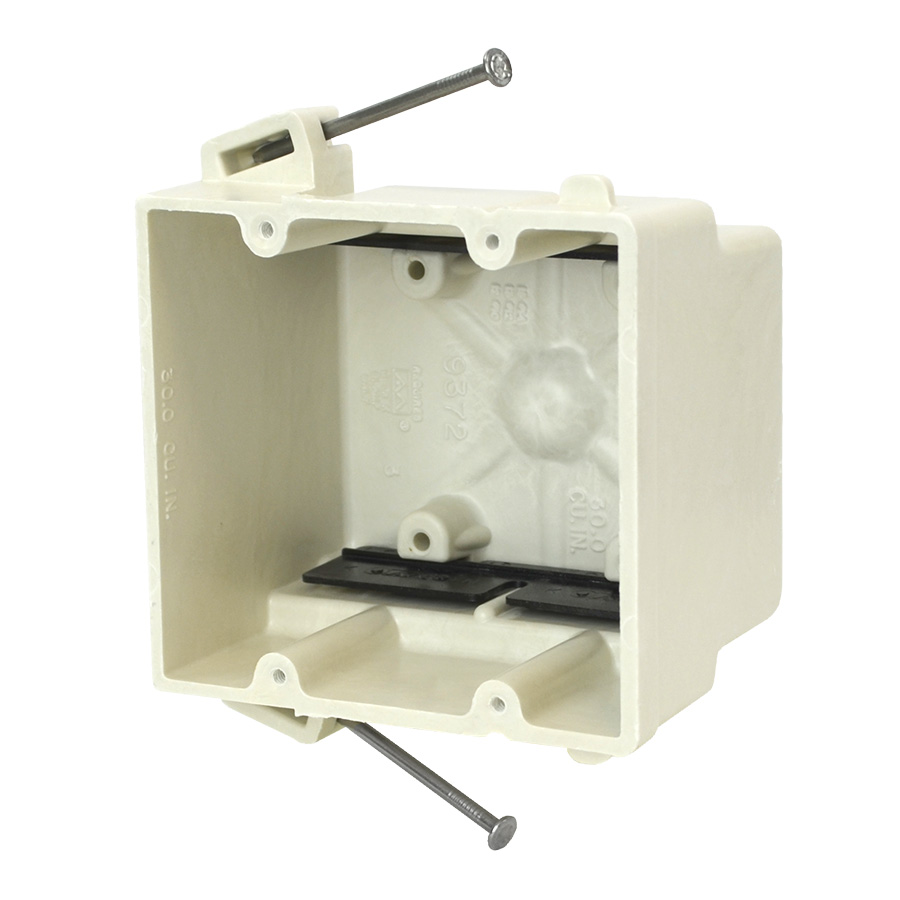

Two gang electrical box for use with nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 9372-NMHK
Height: 3-3/4 in.
Width: 4 in.
Depth: 2-3/4 in.
Volume: 30 cu. in.
Type of Installation: New Work
Wall Box
Number of Gangs: 2
Carton Quantity: 48
Carton Weight: 26 lb.
UPC: 085339106838
UNSPSC: 39121309
Country of Origin: United States of America
Features
Machine tapped device holes, 3/16" panel stops, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed
Application
Manufactured housing construction 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Angled mid nails with 3/16" panel stops opposite side
Additional Materials
Carbon steel fasteners
Polyvinyl chloride clamps
