Product Description

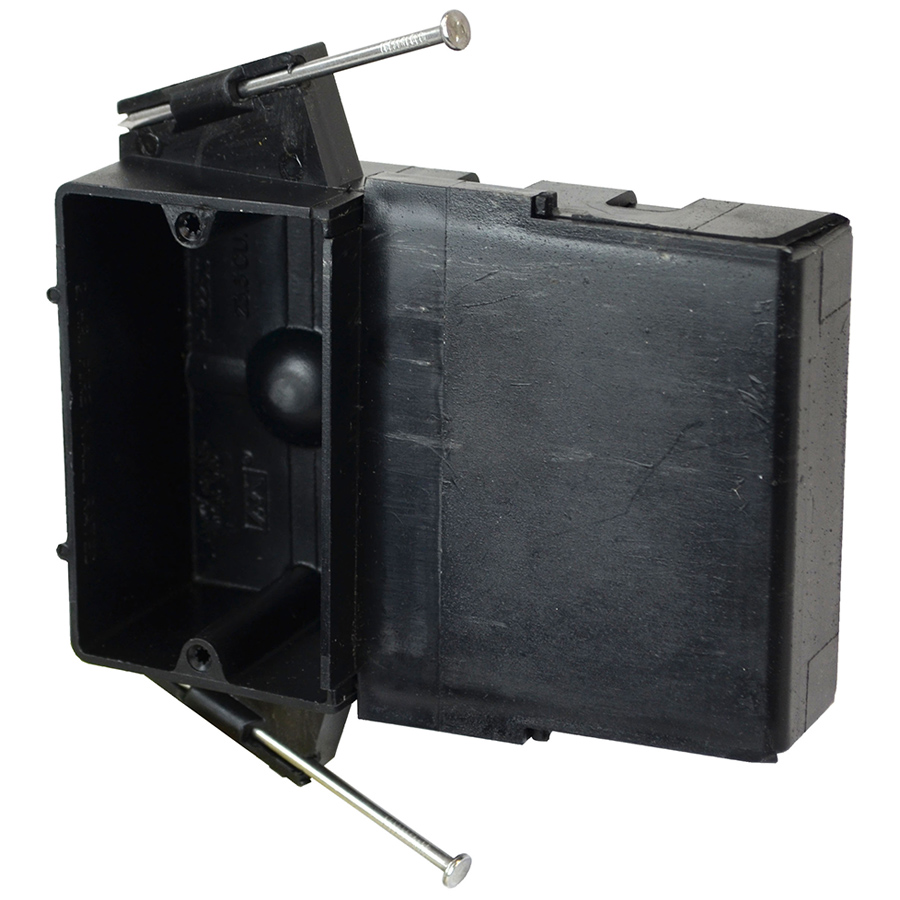

Single gang electrical box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: P-122SC
Height: 3-3/4 in.
Width: 2-9/32 (5-1/2) in.
Depth: 1-3/4 in.
Volume: 23.5 cu. in.
Type of Installation: New Work
Wall Box
Number of Gangs: 1
Carton Quantity: 24
Carton Weight: 9 lb.
UPC: 085339249146
UNSPSC: 39121309
Patents:
U.S. Patent No. 8,143,518
Country of Origin: United States of America
Features
Molded-in splined device holes, offset gauge marks, leveling ribs, cover and pocket for additional cubic inch fill in shallow walls
Application
New work residential construction 2 HR fire resistive walls (shallow 1" x 2") & ceilings
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes must be 4-½ feet from one another
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polyvinyl Chloride
Mounting
Angled mid nails with two optional bottom mount recessed buttons
Additional Materials
Carbon steel fasteners
