Product Description

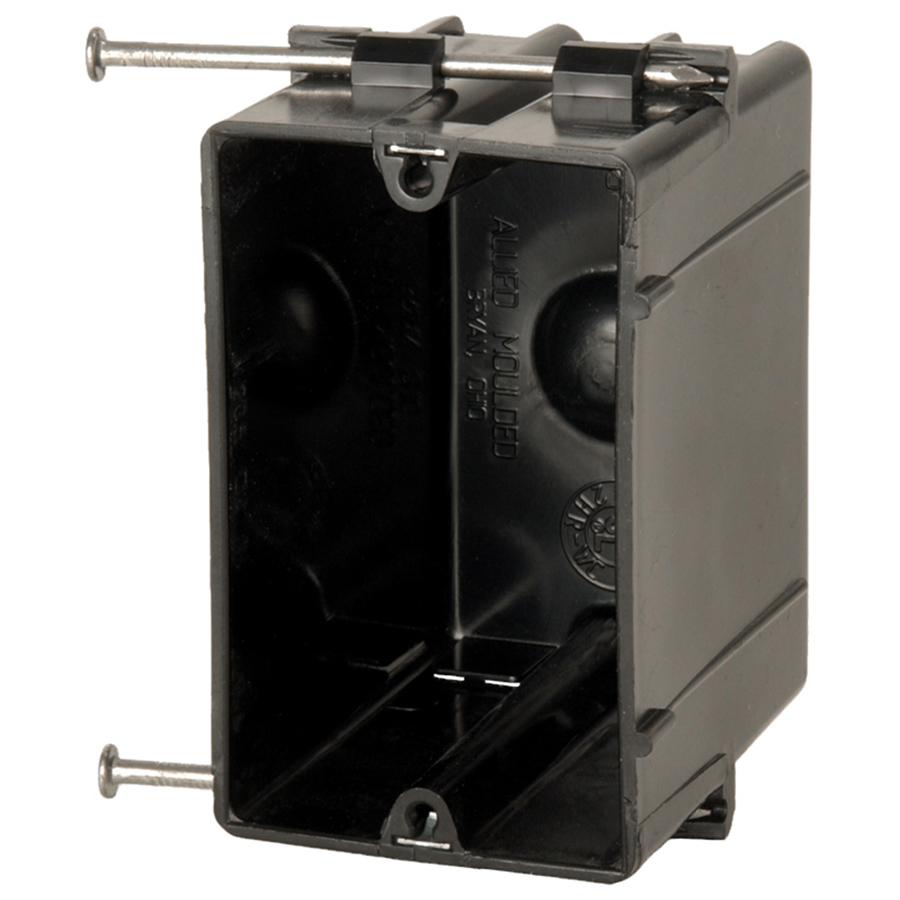

Single gang electrical box for use with nonmetallic sheathed cable

Brand: flexBOX®
Catalog #: P-201QT

Height: 3-3/4 in.
Width: 2-5/16 in.
Depth: 3-1/8 in.
Volume: 20.5 cu. in.
Type of Installation: New Work
Wall Box
Number of Gangs: 1

Carton Quantity: 100
Carton Weight: 25 lb.

UPC: 085339249092
UNSPSC: 39121308
Country of Origin: United States of America

Features

Quick Thread device holes, offset gauge marks, leveling ribs


Application

New work residential construction 2 HR fire resistive walls & ceilings


Standards

ANSI / UL 514C: File No. E30594



Ul Code Black




Fire Classification

Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)

Note: Products must also be certified to: ANSI / UL 514C



Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches


Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes must be 4-½ feet from one another

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


Color

Black


Material

Polyvinyl Chloride


Mounting

Angled mid nails


Additional Materials

Carbon steel fasteners


Galvanized snap in bracket
