Product Description

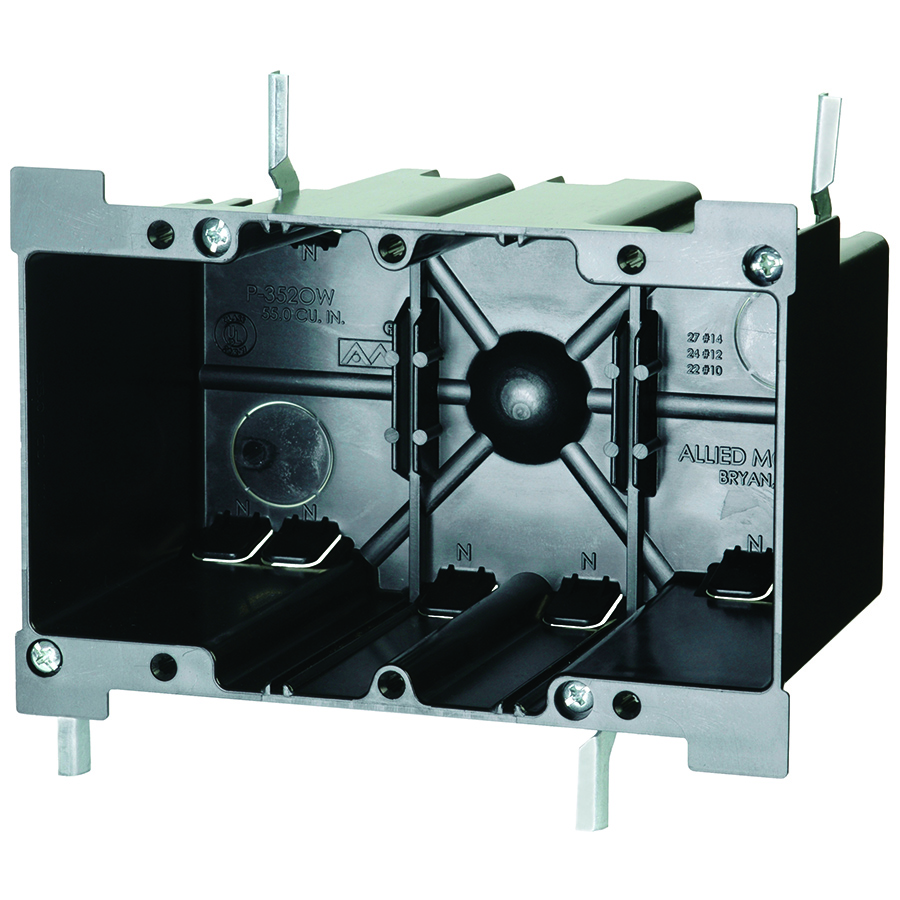

Three gang electrical box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: P-352OW
Height: 3-11/16 in.
Width: 5-15/16 in.
Depth: 3-3/8 in.
Volume: 55 cu. in.
Type of Installation: Old Work
Wall Box
Number of Gangs: 3
Carton Quantity: 12
Carton Weight: 6 lb.
UPC: 085339332015
UNSPSC: 39121308
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Molded-in spline device holes, slot provision for low voltage divider, rectangular exterior for easy cut-in
Application
Old work residential construction 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Metal wing brackets/nonmetal ears wall compression
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
