Product Description

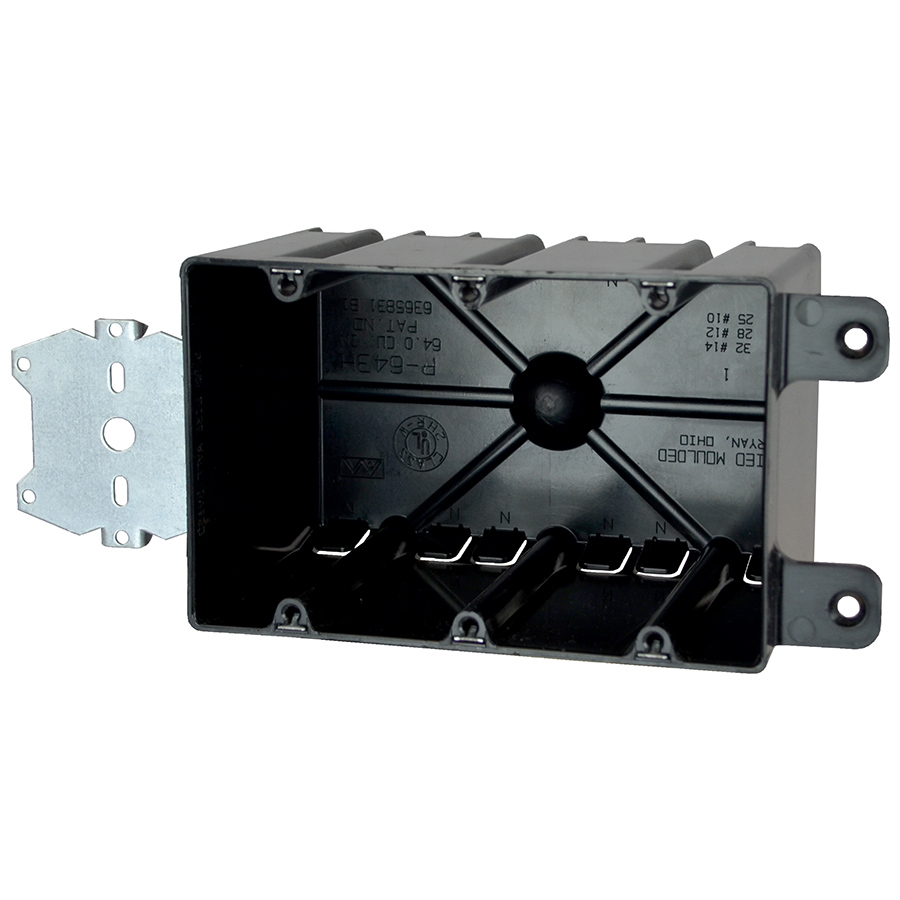

Three gang electrical box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: P-643HQT
Height: 3-3/4 in.
Width: 5-13/16 in.
Depth: 3-9/16 in.
Volume: 64 cu. in.
Type of Installation: New Work
Wall Box
Number of Gangs: 3
Carton Quantity: 20
Carton Weight: 11 lb.
UPC: 085339463047
UNSPSC: 39121308
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Quick Thread device holes, leveling ribs
Application
New work residential construction 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Stud face mount steel hanger bracket with 1/2" offset and opposite side drywall tabs
Additional Materials
Galvanized snap in bracket
