Product Description

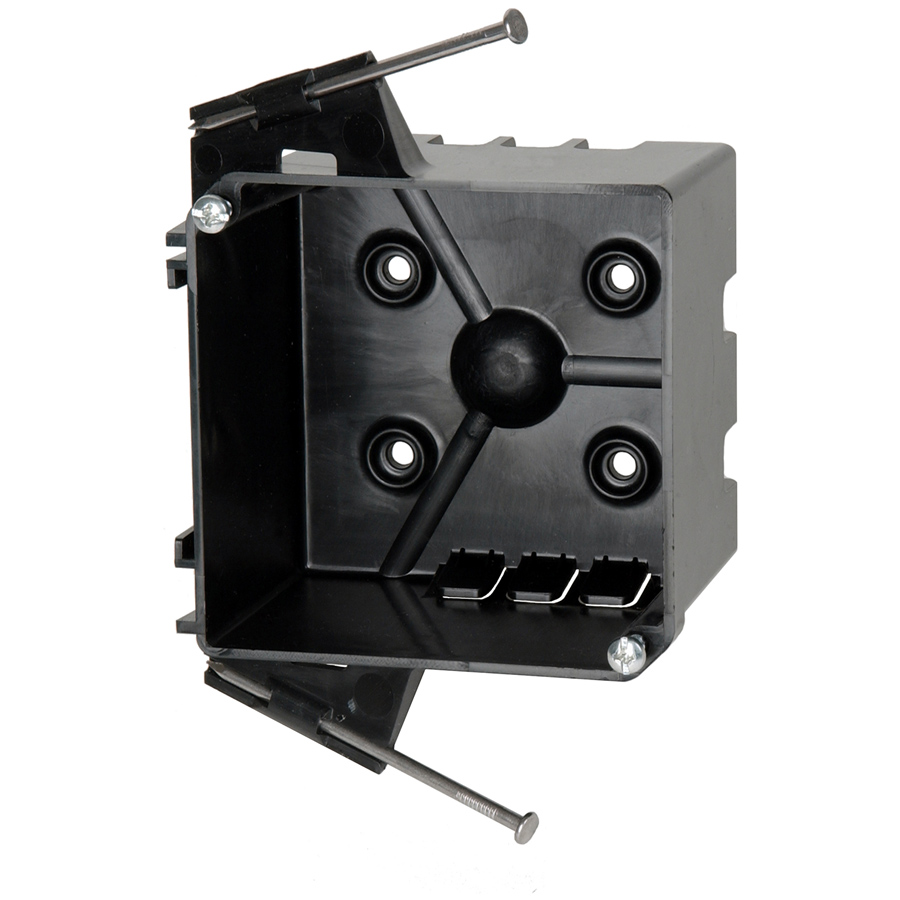

4 square inch electrical junction box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: PJ-32N
Height: 4 in.
Width: 4 in.
Depth: 2-1/2 in.
Volume: 32.5 cu. in.
Type of Installation: New Work
Wall Box
Carton Quantity: 48
Carton Weight: 13 lb.
UPC: 085339990031
UNSPSC: 39121332
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped cover screw holes, cover screws included
Application
In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polyvinyl Chloride
Mounting
Angled mid-nails
Additional Materials
Carbon steel fasteners
Plated carbon steel fasteners
