Product Description

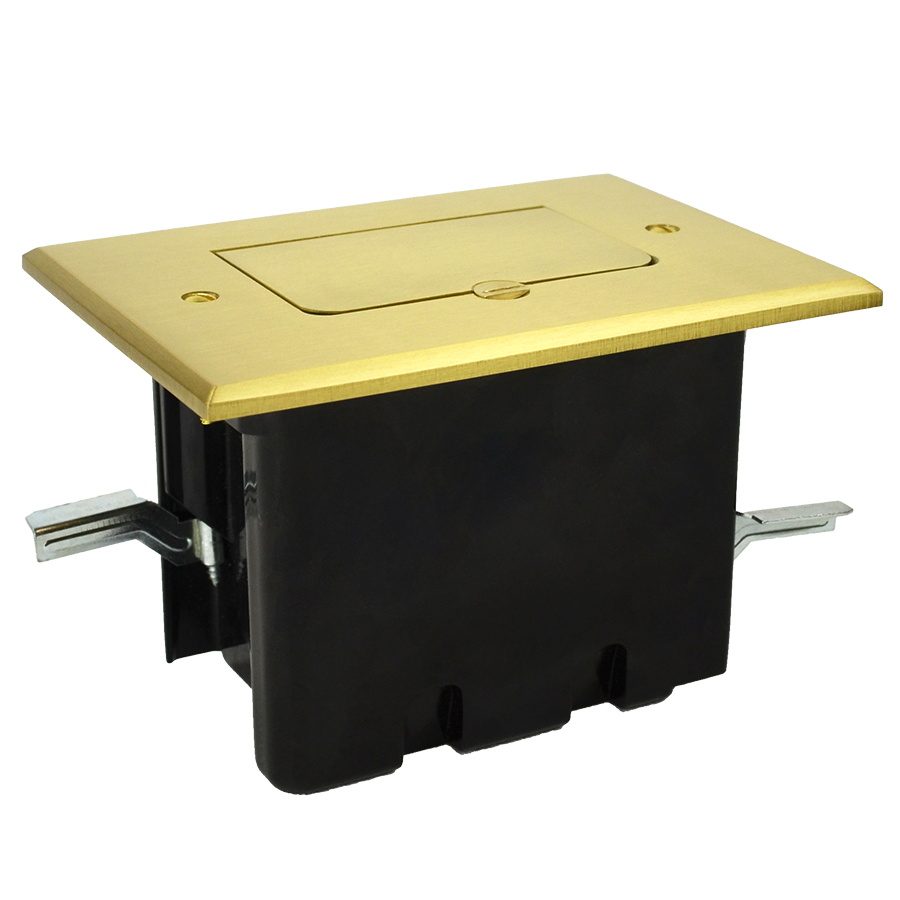

Single gang rectangular floor box assembly with a brass flip-lid cover for a decorative style device
Catalog #: FB-6
Height: 4.31 in.
Width: 2.50 in.
Depth: 3.50 in.
Volume: 24.5 cu. in.
Type of Installation: Old or New Work
Carton Quantity: 6
Carton Weight: 10 lb.
UPC: 085339972334
UNSPSC: 39121307
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: China
Features
Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application
Application
Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings
FLOOR BOX 714LColor
Black
Material
Polycarbonate box and brass cover
Mounting
Metal wing brackets/nonmetal flange floor or ceiling compression
Additional Materials
Closed cell rubber gasket
Galvanized steel dust plate with plated carbon steel fasteners
Nitrile O-ring
Nonmetallic pop-in cable clamp
Plated carbon steel fasteners
FB-2
FB-6DB
FB-6N
FB-6CVR
