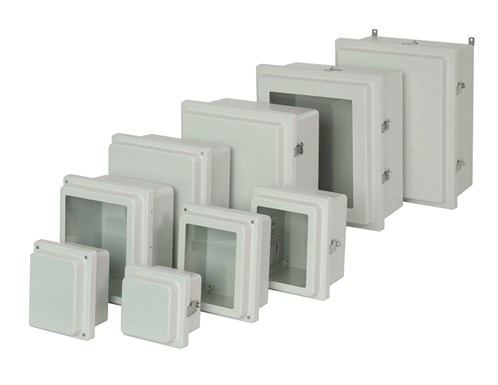

AMR Series Raised Cover Enclosures JIC Raised Cover

The AM-R Series offers the same sizes and options as our AM
series, with the added feature of a raised cover. The cover adds
an additional 1 3/4” of depth to accommodate switches and other devices, and can be used with an optional hinged front panel for maximum configuration flexibility within a single enclosure.
AM-R Series enclosures insulate and protect controls and
components in both indoor and outdoor applications, including
high temperature and/or corrosive environments. Available in
standard JIC sizes with a variety of latching options for any
application.

Browse All AMR Series Enclosures And Accessories



AMR Series Features & Benefits

• Molded Ultraguard® fiberglass reinforced polyester material
construction for durability

• Continuous 316 stainless steel hinge

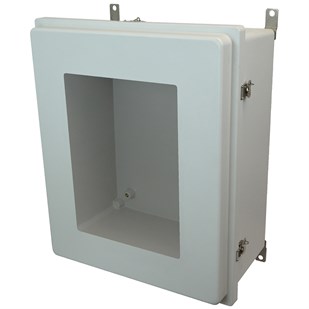

AM24208RTW

• Formed-In-Place (FIP) polyurethane gasket system encased in continuous channel

• Raised cover for additional depth

• 316 series stainless steel hardware and mounting feet

• Mounting panel inserts for optional back panel

• Optional hinged front panel

• UV stabilized for outdoor use

• Non corrosive, non-conductive, temperature-resistant, and
fire-resistant

• Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

Any of the AM Series enclosures can be customized with:

       • Custom holes and cutouts

       • Custom size polycarbonate viewing windows

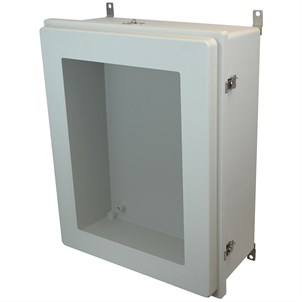

AM30248RTW

       • Molded-in color matches

       • Hinge installed on short side

       • EMI/RFI shielding

       • Factory-supplied silk screening

Accessories include:

       • Back panels available in painted carbon steel, aluminum,
         fiberglass, or galvannealed steel

       • Aluminum hinged front panel for configuration flexibility

       • UV resistant polycarbonate viewing windows

       • Thermal management products
