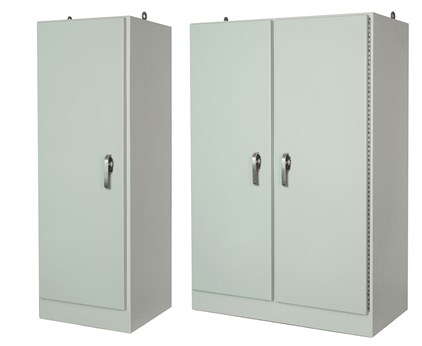

Free Standing Empire Series Enclosures

Allied Moulded Products, Inc. has the premier choice of
fiberglass enclosures for the largest applications. The fiberglass
construction offers durability and strength without the excessive
weight of a comparable metal enclosure. The series is available
in two freestanding sizes 72” x 25” x 25” and 72” x 49” x 25”.

Browse Empire Free Standing Series Enclosures

Empire Series Features & Benefits

• Gel Coat fiberglass reinforced polyester material
  construction for durability

• Continuous 316 stainless steel hinge

• Flexible, self-gripping gasket compresses over flange for tight seal

• Freestanding units have 3-point latching handles with padlock provision, which meet NEMA Type 4 requirements

• 316 stainless steel heavy-duty lifting eye bolts for
  end use material handling

• Heavy-duty reinforced back panel bosses molded in
  for internal mounting of critical electrical components

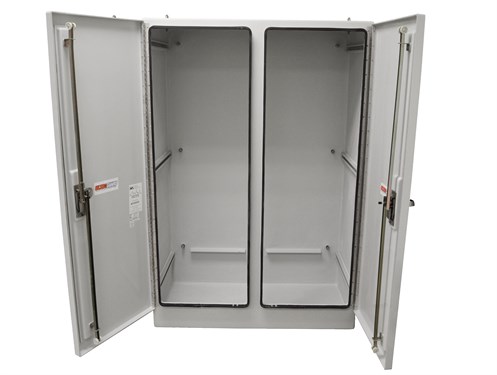

• Internal side wall mounting strats in double door
  units for additional panel mounting space

• Optional white painted carbon steel back panels are
  fully interchangeable with other specified enclosures
  fiberglass reinforced polyester material formulation

• Molded-in shelf added inside on back wall to aid in
  back panel installation

• Non-corrosive and Non-conductive

• Lightweight vs. stainless steel

• Temperature-resistant

• Fire-resistant

• Rated NEMA1, 4, and 4X: IP66 (IEC 60529)
