Product Description

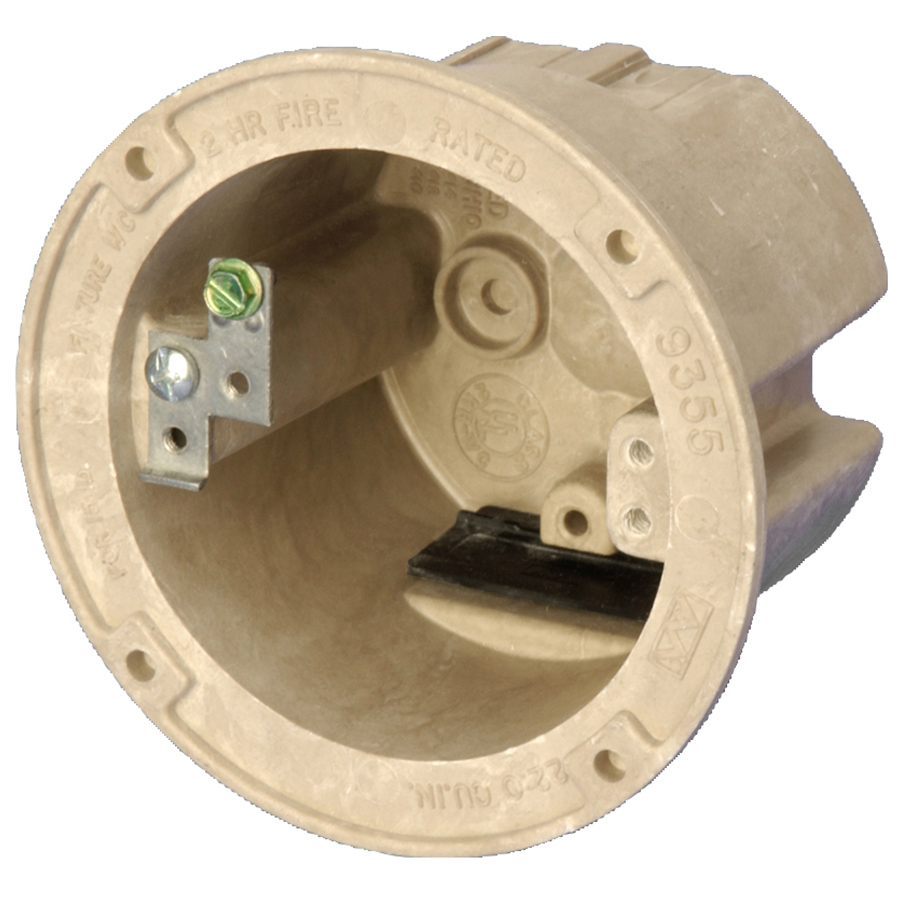

3.5" dia. round fixture support box for use with nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 9355-G
Width: 3-1/2 in.
Depth: 2-3/4 in.
Volume: 22 cu. in.
Type of Installation: Old Work
Round Ceiling Box
Carton Quantity: 48
Carton Weight: 19 lb.
UPC: 085339104919
UNSPSC: 39121316
Country of Origin: United States of America
Features
Machine tapped fixture holes, ground strap, round exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps bulk packed
Application
Old work residential construction 2 HR fire resistive walls (15 lbs fixture support - flange mount) and ceilings (50 lbs. fixture support - bottom mounted)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Bottom mount button holes or flange holes
Additional Materials
Polyvinyl chloride clamps
Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw
Support Rating
15 lbs fixture support - flange mount or 50 lbs. fixture support - bottom mounted
