Product Description

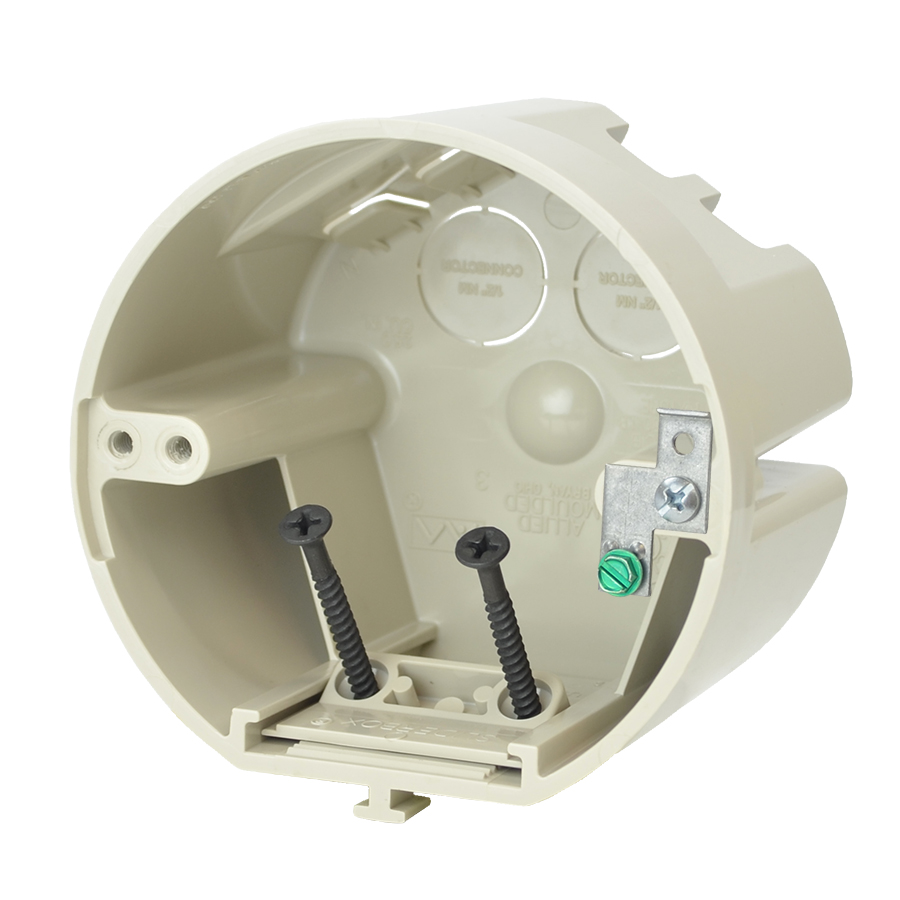

4" dia. round fixture support box for use with nonmetallic sheathed cable
Brand: SLIDERBOX®
Catalog #: SB-CBG
Width: 4 in.
Depth: 2-3/4 in.
Volume: 25 cu. in.
Type of Installation: Old or New Work
Round Ceiling Box
Carton Quantity: 12
Carton Weight: 4 lb.
UPC: 085339945079
UNSPSC: 39121316
Patents:
U.S. Patent No. 7,855,338
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped fixture holes, adjustable mounting plate for additional substrate thickness
Application
New and old work residential construction 2 HR fire resistive floors and ceilings (50 lbs. fixture support)
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Polycarbonate
Mounting
Internal screws with adjustable slider plate for substrates 1/2" to 1 5/32"
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Carbon steel fasteners
Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw
Support Rating
50 lbs fixture support
