Product Description

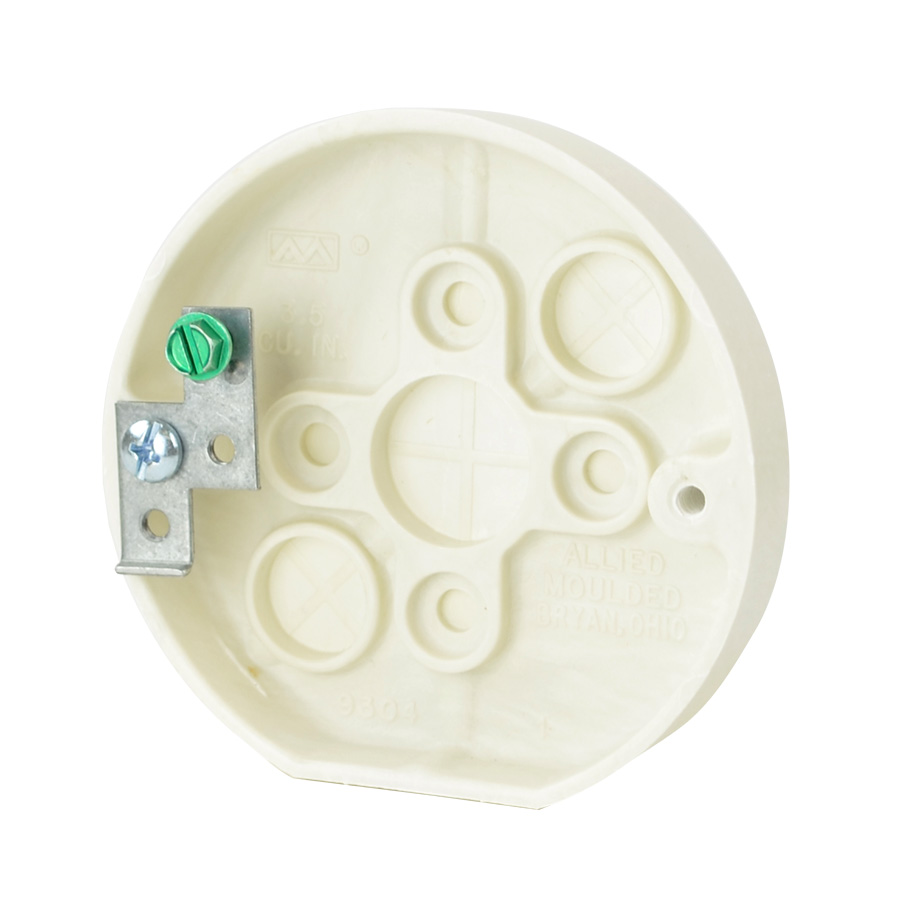

3/0 round pan box for use with wall light fixtures and nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 9304-G
Width: 3-3/8 in.
Depth: 5/8 in.
Volume: 3.5 cu. in.
Type of Installation: Old or New Work
Wall Box
Carton Quantity: 100
Carton Weight: 14 lb.
UPC: 085339100263
UNSPSC: 39121317
Country of Origin: United States of America
Features
Machine tapped fixture holes on 2 3/4" centers, ground strap, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
Application
New or old work residential construction 2 HR fire resistive walls and ceilings - See 2008 NEC 410.10 for use with light fixtures
Standards
Not UL® listed
Fire Classification
Fire Test of Building Construction Material
Not for use in fire resistive wall or ceiling assemblies
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Bottom mounting holes provided for fastening
Additional Materials
Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw
Support Rating
see 2008 NEC 410.10 for use with light fixtures
