Product Description

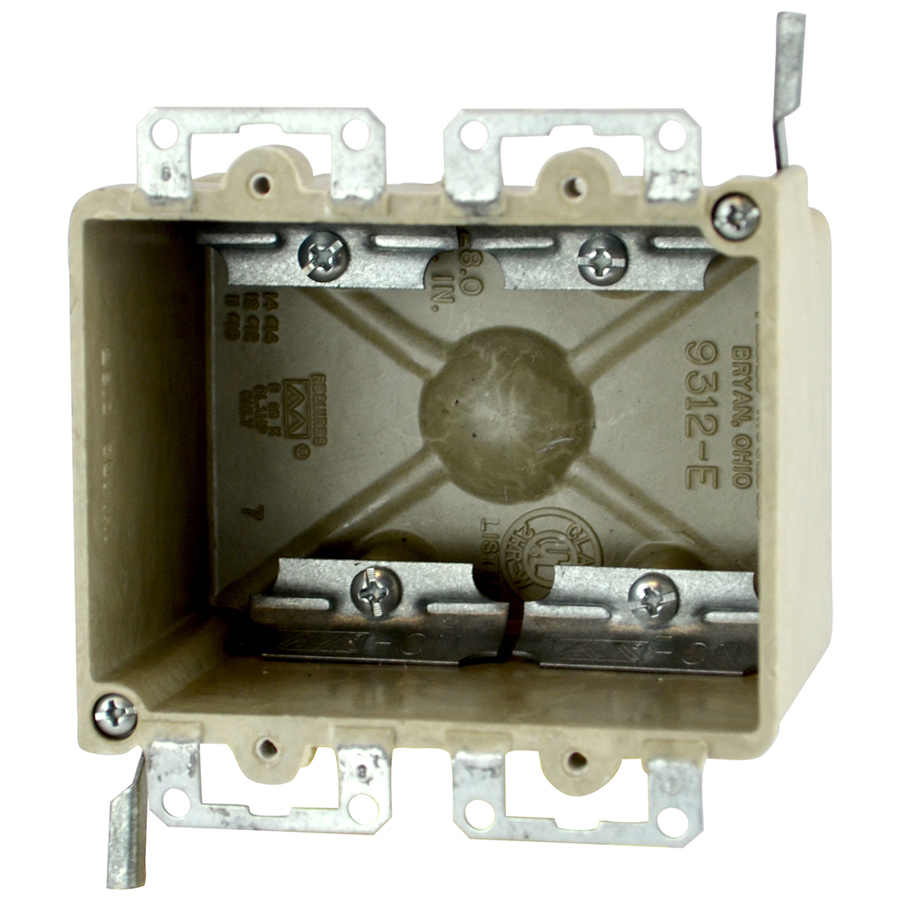

Two gang electrical box for use with nonmetallic sheathed cable
Brand: fiberglassBOX™
Catalog #: 9312-EWC4
Height: 3-1/4 in.
Width: 4-1/8 in.
Depth: 2-3/4 in.
Volume: 28 cu. in.
Type of Installation: Old Work
Wall Box
Number of Gangs: 2
Carton Quantity: 50
Carton Weight: 28 lb.
UPC: 085339291206
UNSPSC: 39121308
Country of Origin: United States of America
Features
Machine tapped device holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
Application
Old work residential construction 2 HR fire resistive walls
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Fiberglass reinforced polyester BMC
Mounting
Metal wing brackets/metal ears wall compression
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Plated carbon steel clamp and fasteners
