Product Description

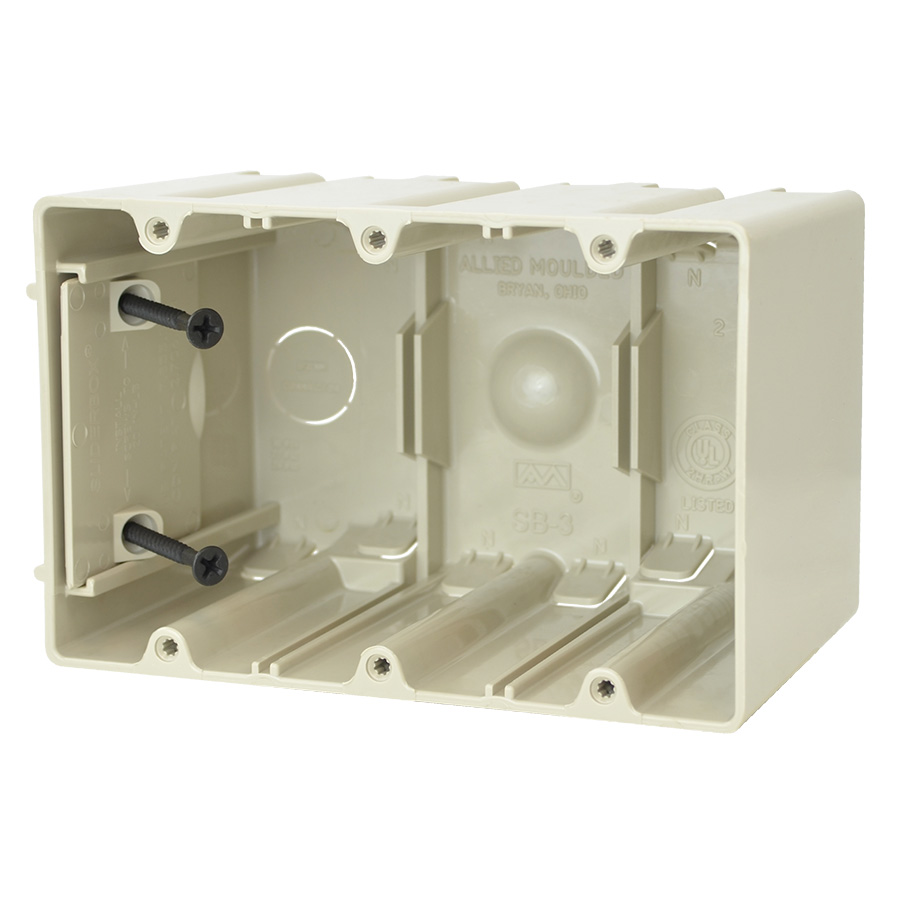

Three gang adjustable electrical box for use with nonmetallic sheathed cable
Brand: SLIDERBOX®
Catalog #: SB-3
Height: 3-3/4 in.
Width: 5-13/16 in.
Depth: 3-9/16 in.
Volume: 61 cu. in.
Type of Installation: Old or New Work
Wall Box
Number of Gangs: 3
Carton Quantity: 6
Carton Weight: 3 lb.
UPC: 085339945024
UNSPSC: 39121308
Patents:
U.S. Patent No. 7,855,338
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, slot provision for low voltage divider, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks
Application
New and old work residential construction 2 HR fire resistive walls and ceilings
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 24 inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Beige/tan
Material
Polycarbonate
Mounting
Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"
Additional Materials
Carbon steel fasteners
