Product Description

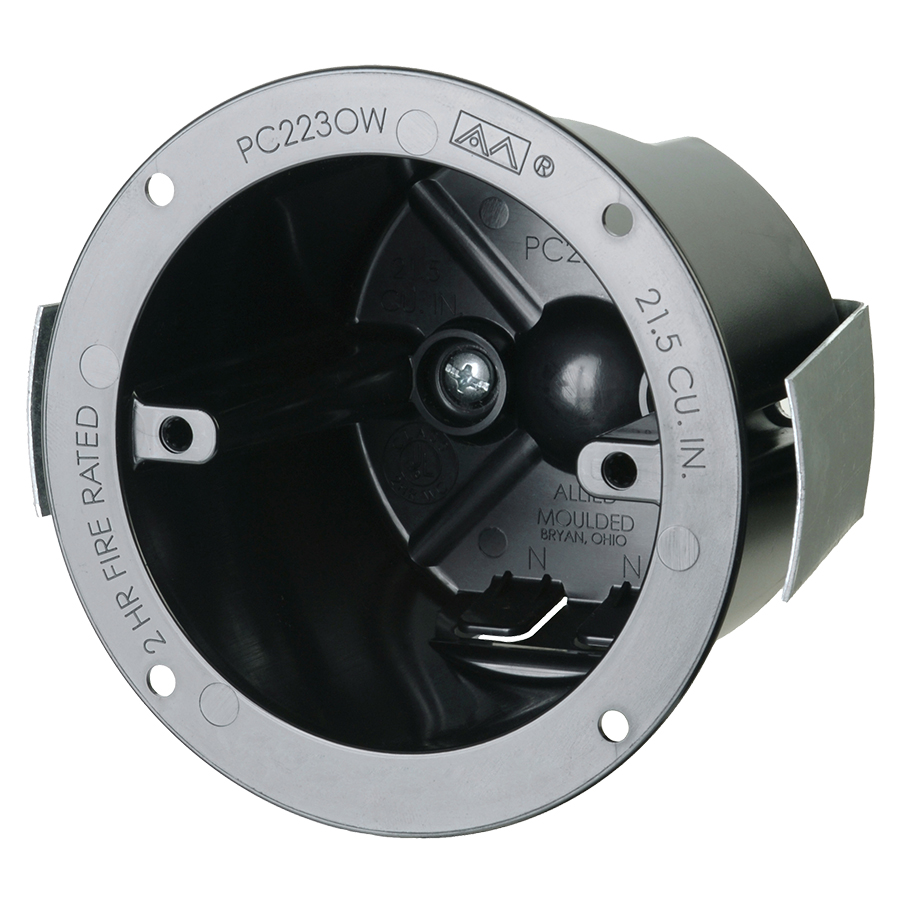

3.5" dia. round fixture support box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: PC223OW
Width: 3-1/2 in.
Depth: 2-13/16 in.
Volume: 21.5 cu. in.
Type of Installation: Old Work
Round Ceiling Box
Carton Quantity: 24
Carton Weight: 9 lb.
UPC: 085339980285
UNSPSC: 39121316
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped fixture holes, round exterior for easy cut-in
Application
Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Snap bracket/box flange wall compression
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Support Rating
Meets NEC for wall applications
PC223OWG
