Product Description

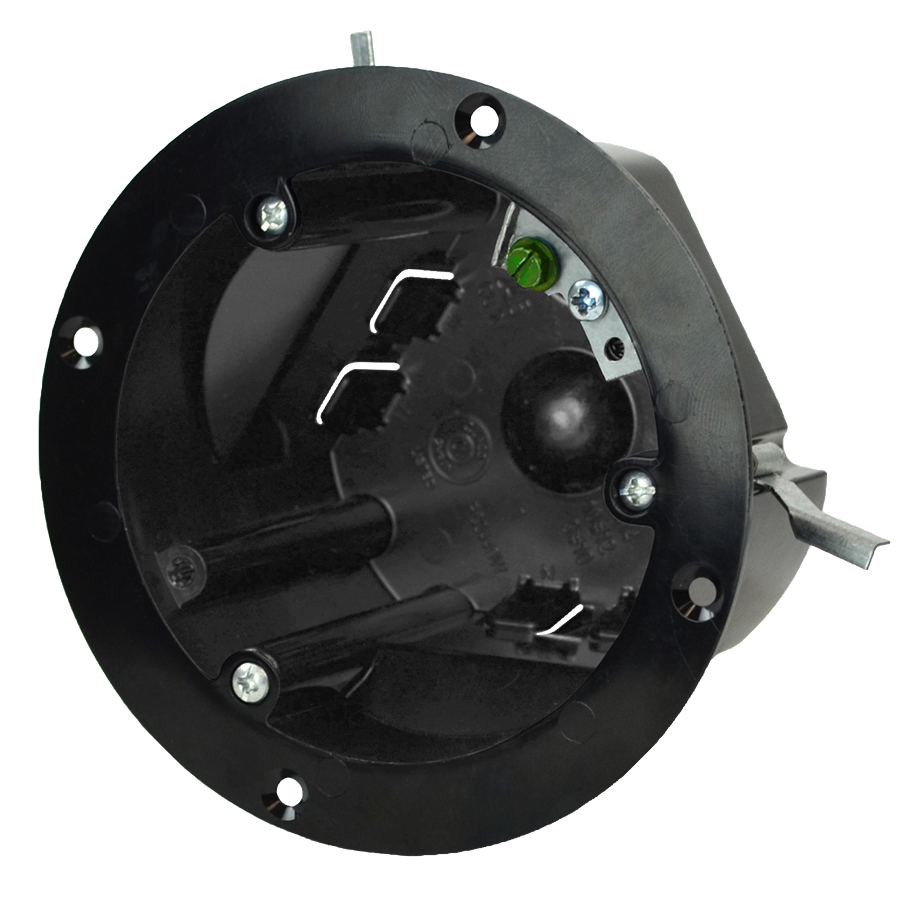

4" dia. round fixture support box for use with nonmetallic sheathed cable
Brand: flexBOX®
Catalog #: PC244OWG
Width: 4 in.
Depth: 3 in.
Volume: 24.5 cu. in.
Type of Installation: Old Work
Round Ceiling Box
Carton Quantity: 24
Carton Weight: 8 lb.
UPC: 085339974185
UNSPSC: 39121316
Patents:
U.S. Patent No. 6,365,831 B1
Country of Origin: United States of America
Features
Machine tapped fixture holes, round exterior for easy cut-in, ground strap
Application
Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.
Standards
ANSI / UL 514C: File No. E30594
Fire Classification
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Color
Black
Material
Polycarbonate
Mounting
Metal wing brackets/nonmetal ears wall compression
Additional Materials
Galvanized steel brackets and plated carbon steel fasteners
Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw
Support Rating
Meets NEC for wall applications
